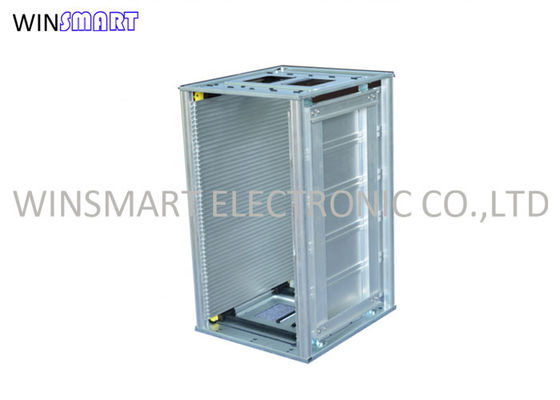

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line
ESD PCB Storage Magazine Rack Aluminum For SMT Production Line ESD PCB Storage Magazine Rack Aluminum For SMT Production Line

Large Image :  ESD PCB Storage Magazine Rack Aluminum For SMT Production Line

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: PM0229
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD1-100/Set
Packaging Details: Plywood case
Delivery Time: 7-14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sets per month

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line

Description
Size: 355x320x563mm Temp.: 150°C
Usage: SMT Production Line Pitch: 10mm
PCB Quantity: 50pcs Name: PCB Magazine Rack
High Light:

PCB Storage Magazine Rack

,

Aluminum PCB Magazine Rack

,

SMT Production Line PCB Magazine Rack

ESD PCB Storage Magazine Rack Aluminum SMT Rack For SMT Production Line





SMT ESD Magazine Rack
Full metal PCB magazine rack, sideboard is made by Aluminium material, high temperature for heated PCB , screw adjust type can be putted into oven and bear 300- 400 degree.C temperature ,compatible for SMT Loader or unloader automatic system.



Specification:

Specifications
Overall Size 355x320x563mm
Style High temperature resistance Heat Resistance type
Top&Bottom Boards Metal
Surface resistance 104Ω-109Ω
PCB capacity 50pcs
Suitable PCB Size 350x(50-250)mm
Side Guide Slot depth 3.5mm, width 5mm, pitch 10mm
Adjustment Method Adjustable side pannel,Screw adjustment,easy operation.



Production:

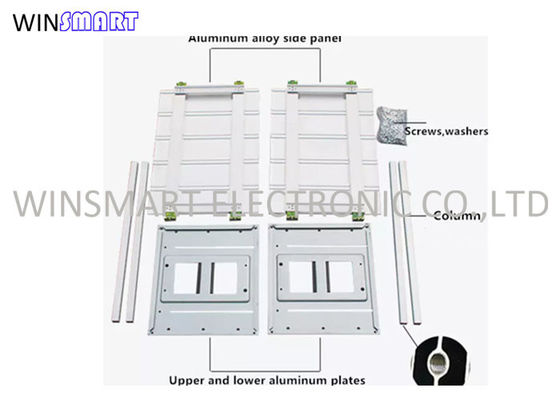

Details:

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line 0ESD PCB Storage Magazine Rack Aluminum For SMT Production Line 1

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line 2

Package:

ESD PCB Storage Magazine Rack Aluminum For SMT Production Line 3
