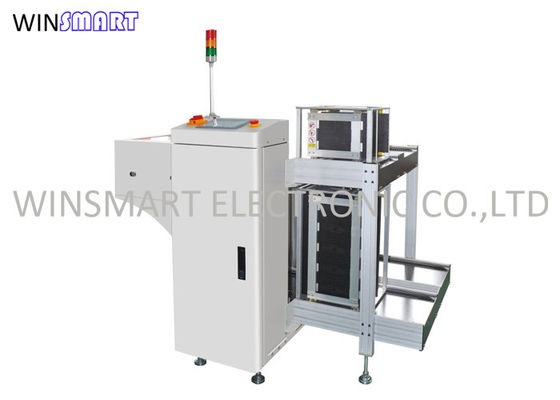

Automatic PCB Magazine Loader , LED Touch Screen SMT Magazine Loader

Brand Name:	Winsmart
Model Number:	SMTPL-250
MOQ:	1 set
Price:	USD1-10000/Set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Condition:

100% New

Video Provide:

Test Report:

Warranty:

2 Years

After-sale Service:

Video Technical Support, Online Support

PCB Width:

250mm(could Be Customized Made)

Selling Unit:

Single Item

Packaging:

Foam And Wooden Case

Package Dimension:

150x110x150cm

Gross Weight:

200kgs

Name:

Automatic PCB Loader

Supply Ability:

5000 sets per month

Highlight:

PCB Magazine Loader

LED Touch Screen SMT Magazine Loader

Automatic SMT Magazine Loader

Product Description

Automatic PCB Magazine Loader PCB Conveyor Dual Track NG OK Unloader

Dual Track NG OK Unloader Instructions:

1. Solid and stable design

2. PLC control system

3. HMI control panel, easier operation

4. Top and bottom pneumatic clamps to secure magazine rack

5. Pressure regulated on pusher’s to prevent board damage

6. Automatic storage (NG/OK) PCB

7. Machine always fault monitoring

8. SMEMA compatible

9. Dual track storage PCB

Dual Track NG OK Unloader Specifications:

Model No	SMTNGD-250	SMTNGD-330	SMTNGD-390	SMTNGD-460
PCB Size(mm)	(50x50)-(350x250)	(50x50)-(455x330)	(50x50)-(530x390)	(50x50)-(530x460)
Machine Size(mm)	1690x1450x1200	1900x1600x1200	2200x1730x1200	2200x1800x1200
Magazine Size(mm)	355x320x560mm	460x400x563	535x460x570	535x530x570
Weight(kg)	200	220	240	280

Dual Track NG OK Unloader Technical Parameters:

Function	PCB Loading Time	Magazine Change Time	Power Supply	Air Pressure
It is used behind AOI, NG and OK PCB are stored separately	Approx 6 seconds	Approx 30 seconds	100-230V, 1PH, Max 300VA	4-6Bar
Transport Height	Transportation Direction	PCB Thickness	Magazine Number	Step Pitch Select
900±20mm(or customized)	L to R or R to L	Min 0.6mm	Up: 1; Down: 1	10mm, 20mm, 30mm, 40mm

Dual Track NG OK Unloader Features:
