Product Details:
|
| Usage: | SMT Production Line | Warranty: | 12 Months |
|---|---|---|---|
| Application: | SMT PCB Assembly Production Line | PCB Size: | 460x330mm(could Be Customized) |
| Power: | 220/110V | Name: | PCB Turn Conveyor |
| High Light: | 300VA PCB Loader Unloader,HMI Control Panel PCB Loader Unloader,PCB Turn Conveyor PCB Loader Unloader |
||

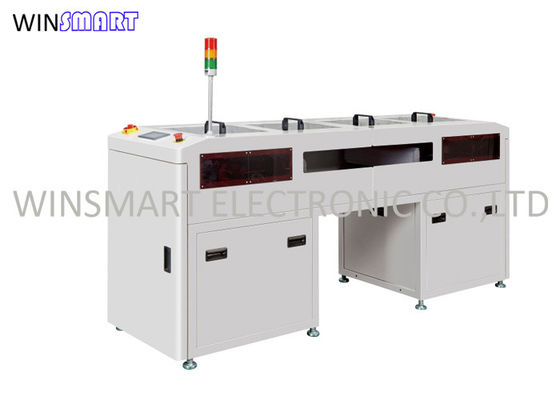

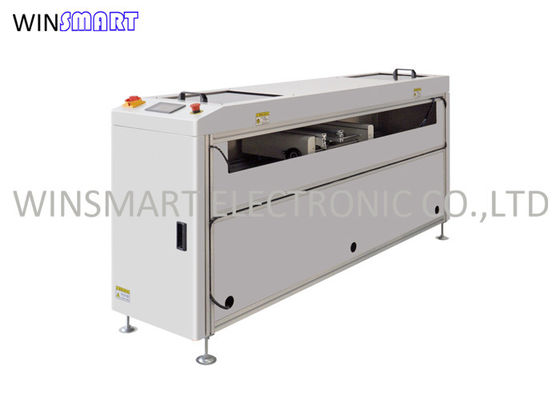

SMT Line Automatic PCB Translation Shuttle 90 Degree Turn Conveyor
Product Description
Enclosed design with built-in torque limiter ensures highest level of safety
The top safety cover can be opened to facilitate maintenance of machine
PLC control system
HMI control panel, easier operation
Independent research and development special slide rail, more stable moving, less noise
Buffering slow down design more stable and precision
Smooth and parallel width adjustment
SMEMA compatible
Specifications:
| Model No | SMTPY-300 | SMTBG-300 |
| PCB Size(mm) | (50x50)-(460x330) | (50x50)-(460x330) |
| Machine Size(mm) | 500x3500x1100 | 500x1300x1100 |
| Weight(kg) | 300 | 110 |
Technical Parameters:
| Function | Max PCB Capacity | Cycle Time | Power Supply |
| It is used to merger or separate PCB into different way in production line | 300PCS(0.6mm thick) | Approx 20 seconds | 100-230V, 1PH, Max 300VA |
| Air Pressure | Transportation Direction | Air Consumption | Transport Height |
| 4-6 bar | L to R or R to L | Max 30L/Min | 900±20mm(or customized) |
Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Package into a wooden case
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 3-7 days
