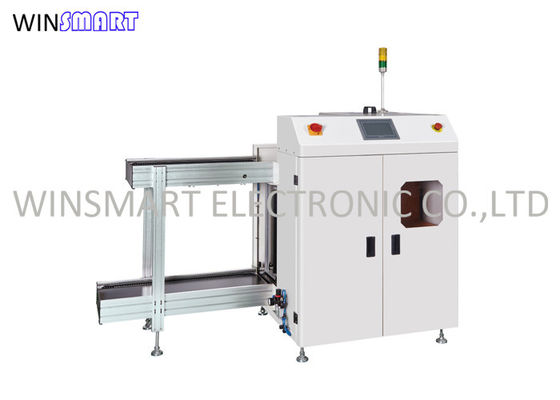

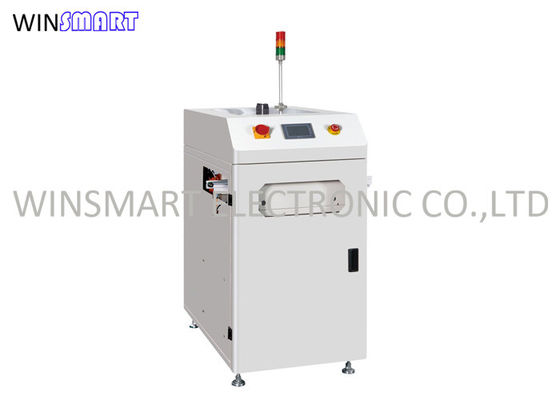

Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle

Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle
Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle

Large Image :  Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTAV-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sets per month

Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle

Description
Usage: SMT Production Line PCB Size: 50*50-500*350mm
Application: SMT PCB Assembly Production Line After-sale Service: Video Technical Support, Online Support
PCB Thickness: Min 0.4mm Name: PCB Loader Unloader
High Light:

Winsmart PCB Loader Unloader

,

PCB Loader Unloader 0.6mm

,

0.6mm PCB Loader Machine

SMT PCB Loader Unloader LED Automatic Vacuum Loader Machine





Product Description

1. Enclosed design with built-in torque limiter ensure highest level of safety.

2. The top safety cover can be opened to facilitate the maintenance of machine

3. HMI control panel, easy to operate

4. Stable and reliable integrated control system

5. Adjustable suction nozzle position to ensure PCB is clamped

6. SMEMA compatible



Specifications:

Model No SMTAV-350
PCB Size(mm) (50x50)-(500x350)
Machine Size(mm) 850x1300x1300
Weight(kg) 160



Technical Parameters:

Function PCB Capacity PCB Loading Time Power Supply
It is used for PCB loading 300PCS(0.6mm thick) Approx 6 seconds 100-230V, 1PH, Max 300VA
Transport Height Transportation Direction PCB Thickness Air Pressure
900±20mm(or customized) L to R or R to L Min 0.6mm 4-6Bar



PCB Transmission:

Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle 0
