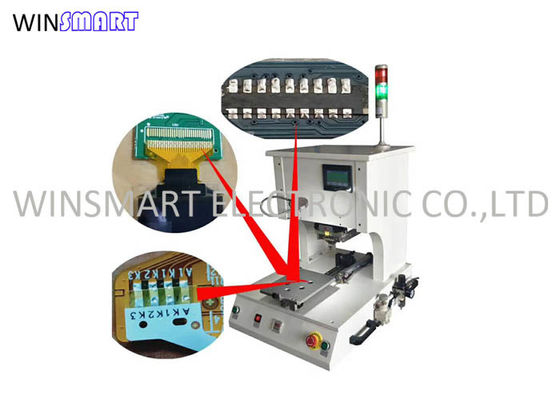

Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control

Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control
Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control

Large Image :  Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTS11
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control

Description
Usage: Hot Bar Max Thermode: 80mm Long
Voltage: 220V/110V Temperature Accuracy: ±2°C
After-sale Service: Online Support Name: Hot Bar Soldering Machine
High Light:

Hot Bar Soldering Machine Tabletop

,

Pulse Heat Hot Bar Soldering Machine

,

Winsmart Hot Bar Machine

Table Top Hot Bar Soldering Machine PCB Soldering Machine ±2°C Accuracy





Hot Bar Soldering Machine Main Features:

The heating rate is customized to meet different products.

Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

The level of soldering head is adjustable, to ensure uniformpart assembly processing.

Digital display to control temperature, easy and clear.

With digital pressure meter, can be preset pressure range.

Special welding materials.

It is equipped with precise PID control, phase Angle instead of pulse drive.

Little vibration, low noise, no voltage fluctuation.

Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting.



Hot Bar Soldering Machine Advantages:

Hot Bar Soldering Machine is an excellent tool and extremely effective in bonding components and parts that are different and not easy to stick together. classic hot bar, pulse bonding, resistance soldering equipment applications include flexible circuits, ribbon cables, wires, flex to PCB, flex to LCD, and thermo compression bonding of gold ribbon as found in the telecommunications, computer, automotive, display industries and other.



Thermode Head Description:

Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

The level of soldering head is adjustable , to ensure uniformpart assembly processing

Digital display to control temperature,easyand clear

With digital pressure meter, can be preset pressure range

Special welding materials

It is equipped with precise PID control, phase Angle instead of pulse drive.

Little vibration, low noise, no voltage fluctuation

Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting



Hot Bar Soldering Machine Principles:

Pulse heat unit is intended to solder electric components.
It consists of a reflow head which holds down the object and applies pressure force and the pulse heat power supply which applies the current.

Pulse heating is an instantaneous heating method. Heating is performed only when the solder is desired to be melted.
Electric current is applied to the iron to generate heat by resistance and the solder is melted. When the solder has melted, the current will be stopped and the solder is cooled. And when the solder has hardened, the heater tip is raised.

Because the pressure is kept applied until the solder is hardened, highly reliable joining without lifting up can be achieved.



PCB Bonding Machine Applicable Area:

LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.

All where there need to be heated or fusing or joining or forming.



Hot Bar Soldering Machine Specification:

Machine size 610×410×450mm
Working area Max 150*150mm
Machine weight 62Kg
Working air pressure 0.6-0.8Mpa
Fixture quantity 1
Thermode head size Max 40*3mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm



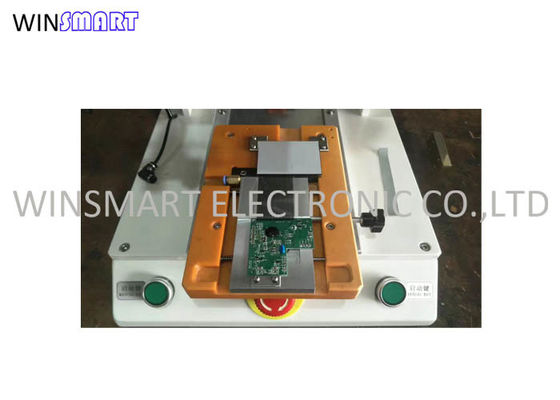

Hot Bar Soldering Machine Application:

Pulse Heat Hot Bar Soldering Machine Tabletop With PID Control 0





Delivery Terms:

1. Ex-work/FOB/CIF/DDU, up to clients

2. Production leadtime: 7-15 days to customized make fixtures/jigs and test it with the punching machine.



Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
