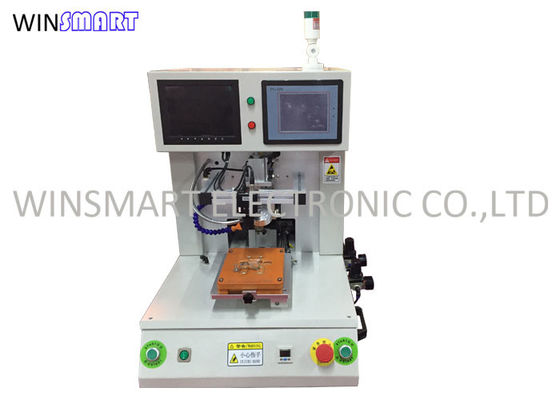

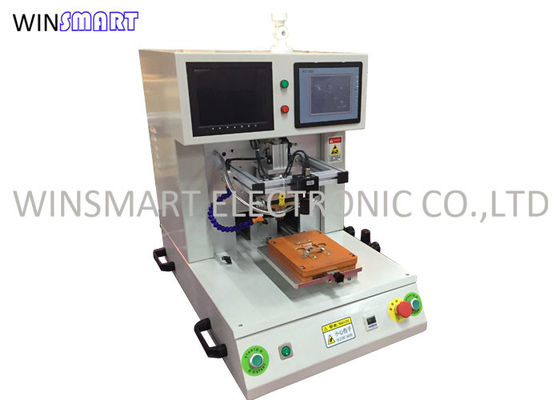

3KW Hot Bar Soldering Equipment , Reflow Soldering Machine Flex To PCB

Description
Min Pin Pitch: 0.2mm Usage: Pulse Heat
Voltage: 220V/110V Rated Capacity: 3KW
Application: Flex To PCB Name: Hot Bar Soldering Machine
High Light:

3KW Hot Bar Soldering Equipment

,

Flex to PCB Reflow Soldering Machine

,

3KW Reflow Soldering Machine

Hot Bar Soldering Machine Reflow Soldering Machine Touch Screen Interface





Thermode Head Introduction:

Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

The level of soldering head is adjustable , to ensure uniformpart assembly processing

Digital display to control temperature,easyand clear

With digital pressure meter, can be preset pressure range

Special welding materials

It is equipped with precise PID control, phase Angle instead of pulse drive.

Little vibration, low noise, no voltage fluctuation

Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting



Main Features:

Hot Bar Soldering Machine is an excellent tool and extremely effective in bonding components and parts that are different and not easy to stick together. classic hot bar, pulse bonding, resistance soldering equipment applications include flexible circuits, ribbon cables, wires, flex to PCB, flex to LCD, and thermo compression bonding of gold ribbon as found in the telecommunications, computer, automotive, display industries and other.





Hot Bar Soldering Machine Specification:

Machine size 590×640×620mm
Working area Max 200*170mm
Machine weight 89Kg
Working air pressure 0.6-0.8Mpa
Fixture quantity 2
Thermode head size Max 40*3mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm



Configuration:

Under pressure cylinder : SMC

Pressure display table : Analog

Magnetic cylinder sensor switch : SMC

Solenoid valve : made in Taiwan

Connectors and trachea : made in Taiwan

Filter regulator : made in Taiwan

Precision cylinder under pressure regulator : SMC

Control system: independent research and development ( Chinese )

Power transformer : 220V, 2000W

Driver module : 45A

Vacuum Generators : SMC

Button switch: Schneider

Relay: Omron

Chassis components: aluminum plus bending parts

Body color: cyan gray



Hot Bar Soldering Machine Application:
