Product Details:
|
| Warranty: | 1 Year | Type: | PCB Soldering |
|---|---|---|---|
| Voltage: | 220V/110V | Temperature Accuracy: | ±2°C |
| Thermode Cooling: | Air | Name: | Pulse Heat Bonding Machine |
| High Light: | Flex PCB Pulse Heat Bonding Machine,0.8Mpa Pulse Heat Bonding Machine,LCD Monitor Pulse Heat Bonding Machine |
||

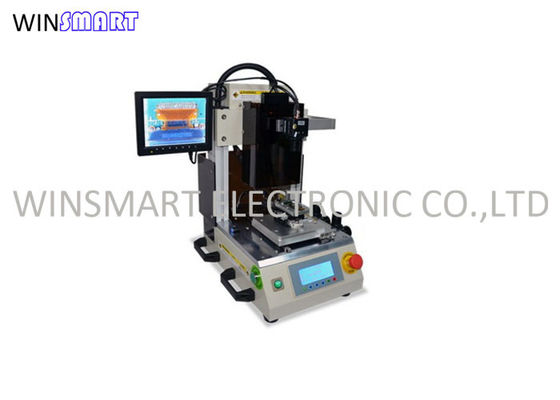

Pulse Heat Bonding Machine Hot Bar Soldering Flex Circuit Board
Overview:
Hot bar soldering, also known as pulsed heat thermode or pulse bonding, is accomplished when two pre-fluxed, solder or adhesive coated parts are heated, causing the solder to melt, flow, and then solidify, forming a permanent electromechanical bond.
Introduction:
This hot Bar Soldering Machine is an excellent tool and extremely effective in bonding components and parts that are different and not easy to stick together. classic hot bar, pulse bonding, resistance soldering equipment applications include flexible circuits, ribbon cables, wires, flex to PCB, flex to LCD, and thermo compression bonding of gold ribbon as found in the telecommunications, computer, automotive, display industries and other.
Main Features:
Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
The level of soldering head is adjustable , to ensure uniformpart assembly processing
Digital display to control temperature,easyand clear
With digital pressure meter, can be preset pressure range
Special welding materials
It is equipped with precise PID control, phase Angle instead of pulse drive.
Little vibration, low noise, no voltage fluctuation
Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting
Parameters:
| Machine size | 500×500×600mm |
| Working area | Max 200*170mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Configuration:
| Body Color | cyan gray |
| Chassis components | aluminum plus bending parts |
| Relay | Omron |
| Under pressure cylinder | SMC |
| Pressure display table | Analog |
| Magnetic cylinder sensor switch | SMC |
| Solenoid valve | Taiwan |
| Connectors and trachea | Taiwan |
| Filter regulator | Taiwan |
| Precision cylinder under pressure regulator | SMC |
| Control system | independent research and development ( Chinese ) |
| Power transformer | 220V, 2000W |
| Driver module | 45A |
| Vacuum Generators | SMC |
| Button switch | Schneider |
