|Pcb Thickness:||1.0 To 3.5mm||Warranty:||One Year|
|Max Cutting Length:||Unlimited||Product Name:||Multi-blade PCB Depaneling Machine|
Multi Slicer Knife PCB Shearing Machine,
3.5mm PCB Shearing Machine,
12 Groups Blade PCB Depaneling Cutter

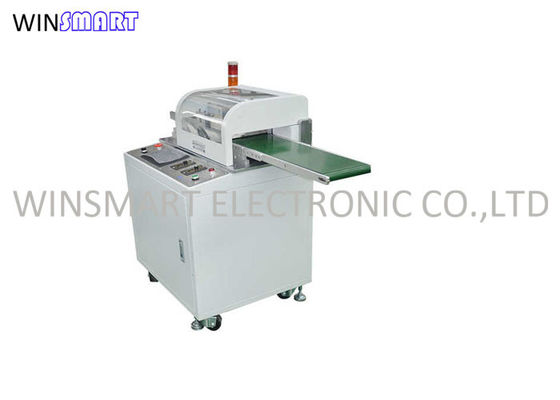

Multi Slicer PCB Cutting Machine PCB Shearing Machine 12 Groups Blades
Multi-blade PCB Depaneling Machine Features:
1. It can cut many boards with multiple sets of knives work at the same time.
2. The knife flywheel is adjustable as a whole from 0 to 5mm
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.8-3.5mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.
10. It can connect the production line to separate the PCB, fitted for batch production.
Multi-blade PCB Depaneling Machine Specification:
|Max cutting length||No limit|
|Min cutting length||100mm|
|Max panel width||220mm|
|Custom cutting width||300mm|
|Min PCB width||8mm|
|Blade material(auto-lock function)||Imported high precision steel|
Multi-blade PCB Depaneling Machine Details:
