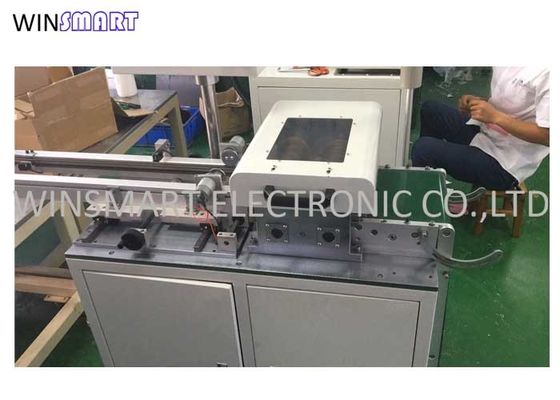

Multi Blade PCB Depaneling Machine PCB LED Strip Cutting

Multi Blade PCB Depaneling Machine PCB LED Strip Cutting
Multi Blade PCB Depaneling Machine PCB LED Strip Cutting Multi Blade PCB Depaneling Machine PCB LED Strip Cutting

Large Image :  Multi Blade PCB Depaneling Machine PCB LED Strip Cutting

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTAD10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Multi Blade PCB Depaneling Machine PCB LED Strip Cutting

Description
Voltage: 220VAC Condition: New
Pcb Thickness: 1.0 To 3.5mm Warranty: One Year
Max Cutting Length: Unlimited Product Name: Multi-blade PCB Depaneling Machine
High Light:

Multi blades PCB Depaneling Machine

,

Winsmart PCB Depaneling Machine

,

PCB Depaneling Machine

Multi-blade PCB Depaneling Machine PCB LED Strip Cutting Machine



Multi-blade PCB Depaneling Machine Features:

1. It can cut many boards with multiple sets of knives work at the same time.

2. The knife flywheel is adjustable as a whole from 0 to 5mm

3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm

4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.

5. It is convenient to adjust the cutting speed through rotary knob

6. No limits of the cutting length.

7. Thickness range of PCB: 0.8-3.5mm

8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.

9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. It can connect the production line to separate the PCB, fitted for batch production.



Multi-blade PCB Depaneling Machine Specification:

Max cutting length No limit
Min cutting length 100mm
Max panel width 220mm
Custom cutting width 300mm
Min PCB width 8mm
PCB thickness 0.8-3.5mm
Feeding speed 0-500mm/s
Working tem. 10-35℃
Blade material(auto-lock function) Imported high precision steel
Storge tem. -20-50℃
Voltage 110-220V
Dimension 2160*570*1050mm






























Our Advantages:

Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.

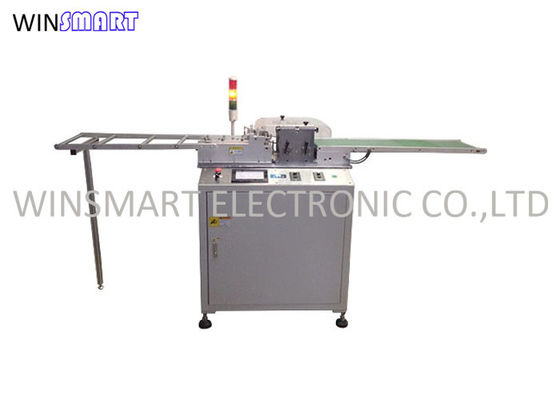

Multi-blade PCB Depaneling Machine Details:

Multi Blade PCB Depaneling Machine PCB LED Strip Cutting 0



Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
