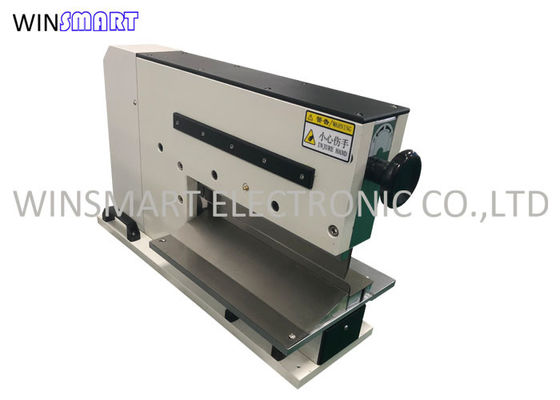

Pneumatic Driven PCB Separator Machine

Pneumatic Driven PCB Separator Machine
Pneumatic Driven PCB Separator Machine Pneumatic Driven PCB Separator Machine

Large Image :  Pneumatic Driven PCB Separator Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Pneumatic Driven PCB Separator Machine

Description
Pcb Thickness: 0.5~3mm Name: Auttomatic PCB Board Separator
Speed: 80-300mm/second Condition: Original New
Power Supply: 110-220v
High Light:

CEM PCB Separator Machine

,

300mm/S PCB Separator Machine

,

Laser Cutting Solution PCB Depaneling Machine

Automatic PCB Board Separator Machine PCB Board Cutter For LED Metal Board



It is widely used in modern PCB industry.

We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting

and laser cutting solutions.



V-Cut PCB Separator Features:

Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.



Blades can be re-sharpened

Cutting stress is less than 500 uE.







V-Cut PCB Separator Specification:

Model SMTPD2
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs

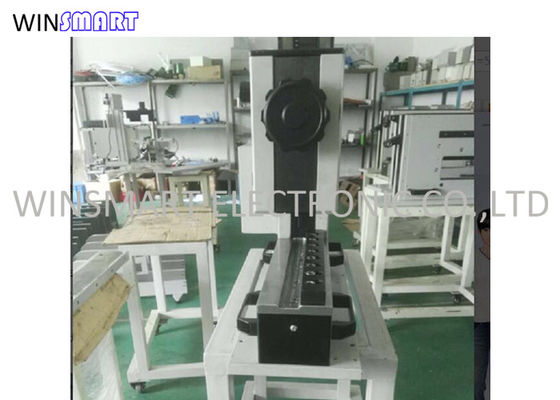

V-Cut PCB Separator Details:

Pneumatic Driven PCB Separator Machine 0Pneumatic Driven PCB Separator Machine 1Pneumatic Driven PCB Separator Machine 2
