FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board

FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board
FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board

Large Image :  FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board

Description
Air Source: 0.4MPa PCB Material: Metal
Weight: 75KG Voltage: 220V/110V
Pcb Thickness: 0.5~3mm Name: V-cut PCB Separator
Highlight:

V Cut PCB Depanelizer

,

Pre Scored PCB V Cut Machine

,

FR4 PCB V Cut Machine

V-Cut PCB Separator PCB V Cut Machine For Pre-scored Printed Circuit Board



V-Cut PCB Separator Overview:

It is widely used in modern PCB industry.

We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting

and laser cutting solutions.



V-Cut PCB Separator Principle:

It uses two linear blades to separate boards with less stress, like a scissor.

And operator cannot mis-feed boards.

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.



V-Cut PCB Separator Specification:

Model SMTPD2
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs

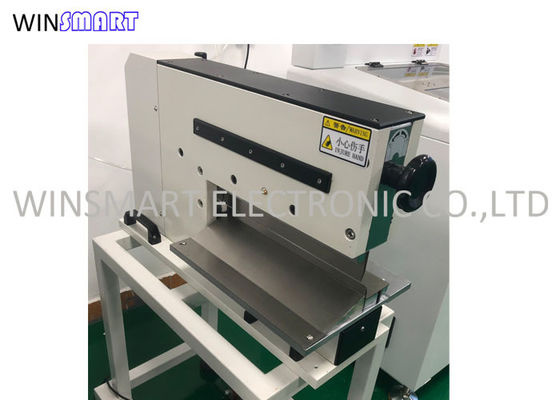

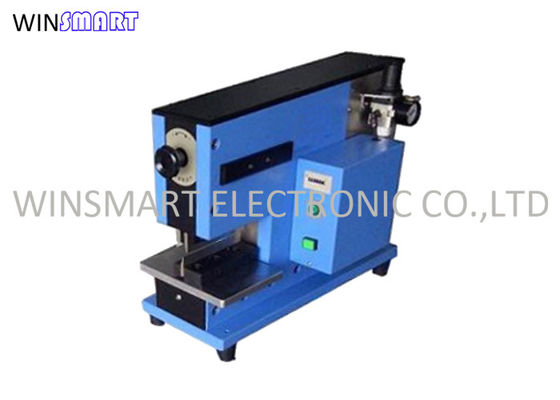

V-Cut PCB Separator Details:

FR4 V Cut Pcb Depanelizer , PCB V Cut Machine For Pre Scored Printed Circuit Board 0
