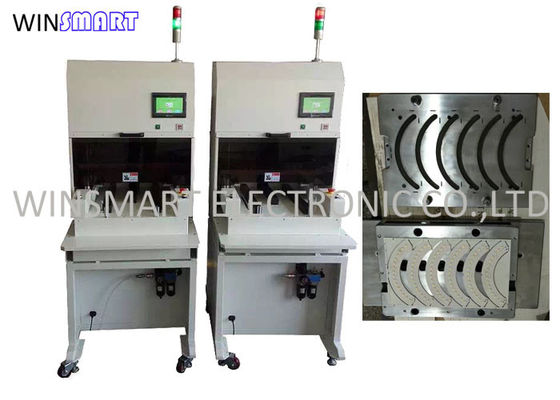

PCB Punching Printed Circuit Board Machine 220V Easy Operation

PCB Punching Printed Circuit Board Machine 220V Easy Operation
PCB Punching Printed Circuit Board Machine 220V Easy Operation

Large Image :  PCB Punching Printed Circuit Board Machine 220V Easy Operation

Product Details:
Place of Origin: China
Brand Name: Winsamrt
Certification: CE
Model Number: SMTP300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets

PCB Punching Printed Circuit Board Machine 220V Easy Operation

Description
Precision: ±0.05mm Voltage: 220V
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power(w): 500W
Warranty: 2 Years Name: PCB Depaneling Equipment
High Light:

PCB Punching Printed Circuit Board Machine

,

Printed Circuit Board Machine 220V

,

PCB Punching Machine 220V

FPC / PCB Punching Dies PCB Depaneler For High Volume Boards Singulation



Advantages:

1. Pneumatic, environmental protection

2. High efficiency, suitable for high volume PCBs

3. Security door protection, ensure safe production



Features:

1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.

2. Die toolings is changeable

3. Easy set up of punching dies

4. Loading and unloading PCBs is convenient

5. Easy operation, has safe protection system

6. Air cylinder driven



Specification:



Working area 460*320mm
Working pressure 0.45-0.7Mpa
Cutting precision ±0.05mm
Cycle time 7-15 seconds
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property

LCD display, Automatically records the number of

processed products, automatic punching

Transmission port International standard
Operation Language English
Stroke 50MM
Mold height 170MM
Power 380/220V
Fuse 3A
Machine dimension 820x740x1750mm
Machine weight 680kgs



PCB Punching Machine Packaging:

1. Fix the machine base on the wooden base by screws

2. Vacuum

3. Lock the wooden case

PCB Punching Printed Circuit Board Machine 220V Easy Operation 0

PCB Punching Machine Delivery Terms:

1. Ex-work/FOB/CIF/DDU, up to clients

2. Production leadtime: 7-15 days to customized make die tooling and test it with the punching machine.
