Product Details:
|
| Mold Height: | 170mm | Stroke: | 50mm |
|---|---|---|---|
| PCB Type: | Routed Boards | Packaging: | Plywood Case |
| Precision: | ±0.05mm | Name: | PCB Punching Machine |
| High Light: | 3A Fuse PCB Separator Machine,PCB Depaneling Cutter For LED Lighting,0.05mm PCB Depaneling Cutter |
||

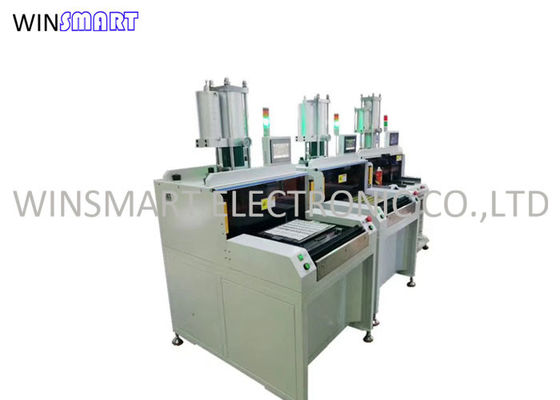

Flexible PCB Punching Machine PCB Separator For LED Lighting
Function:
It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market.
Its minimum cutting precision is ±0.05mm for special slim PCBs. Max working area is 460*320mm.
Introduction:
Double switch start operation.
Device configuration mode and out of the chute,and out of the lower mold automatic pick and place convenient and safe products.
Emergency stop switch,identify problems and timely shutdown.
Security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
Safety pressure setting function,limit alarm.Automatic counting,limit down time.
The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
Suitable for high volume routed boards.
Features:
1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.

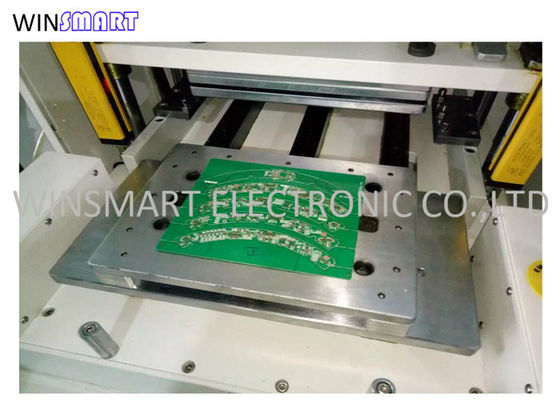

3.Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould
Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
Punching Dies:
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
