Product Details:
|
| Air: | 0.4-0.7MPa | Working Area: | 460x320mm |
|---|---|---|---|
| Output: | 10T | PCB Thickness: | 0.08-3.5mm |
| Punching Fixture: | Die Tooling | Name: | PCB Punching Machine |
| High Light: | High Volume Production PCB Punching Machine,10T PCB Punching Machine,Environmental Protection PCB Punching Tool |
||

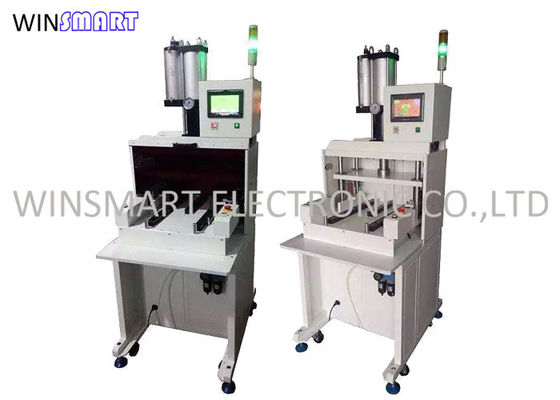

PCB Punching Machine With Precise Die Tooling Design For High Volume Production
PCB Punching Machine Features:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
PCB Punching Machine Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 580kgs |

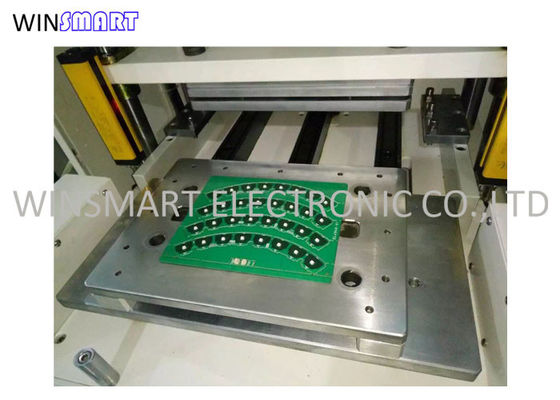

PCB Punching Machine Details:
PCB Punching Machine FAQ:
Q: What is life time of die tooling for the punching machine?
A: About 300,000-500,000 shots.
Q: What is PCB material available?
A: FR4, Alunium, FPC, etc.
Q: What is cycle punching time?
A: 7-12 seconds.
Q: Is cutting bite replaceable?
A: Yes.
Q: How strong is the punching?
A: Optional 5T, 15T, 25T to meet different applications' requirements.
