FR4 0.7MPa PCB V Cut Machine Pneumatic Driven For Metal Boards

Brand Name:	Winsmart
Model Number:	SMTPD2
MOQ:	1 set
Price:	USD1-10000/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

White

PCB Material:

Metal

PCB Thickness:

0.4-5mm

Blade Resharpen:

Condition:

100% New

Name:

Guillotine Cutter

Supply Ability:

200 sets per month

Highlight:

FR4 PCB V Cut Machine

0.7MPa PCB V Cut Machine

0.7MPa PCB V Cut

Product Description

PCB Guillotine Cutter Machine PCB Separator For Metal Boards

Description:

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Features:

Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

Blades can be re-sharpened

Cutting stress is less than 500 uE.

Specification:

Model	SMTPD2
Machine Dimension	720x300x440mm / 520x300x440mm / 500x300x440mm
Max Cutting Length	330mm / 200mm / 130mm
PCB Material	FR4, MCPCB, CEM, Copper Boards
Air Pressure	0.4-0.7MPa
PCB Thickness	0.3-3.5mm
Power	110/220V
Machine Weight	130kgs / 100kgs / 80kgs

Spare Parts Available:

Linear blades replacement

Blade resharpening service available.

Machine Details:

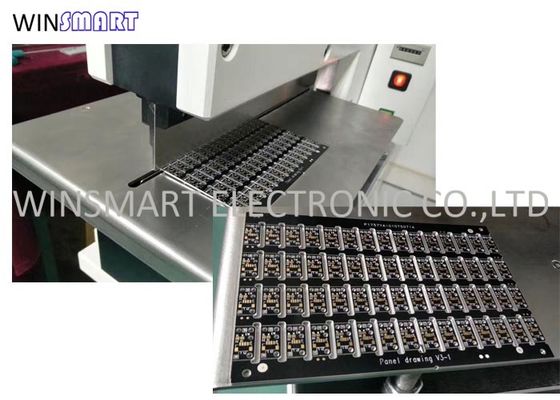

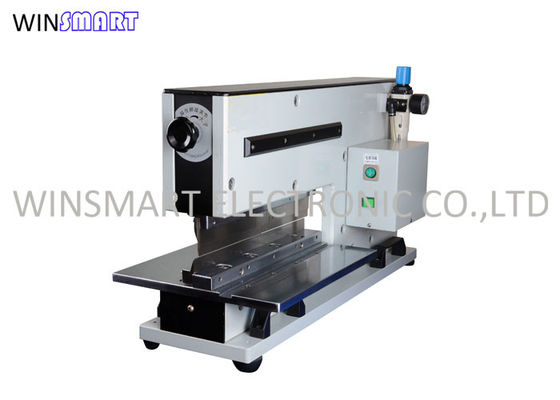

FR4 0.7MPa PCB V Cut Machine Pneumatic Driven For Metal Boards 0
