Product Details:
|
| Power: | AC 220V | Linear Line: | 20um |
|---|---|---|---|
| Scan Range: | 40x40mm | Fixture: | Customized |
| Warranty: | 1 Year | Name: | PCB Laser Cutter |
| High Light: | AC 220V Laser PCB Depaneling Machine,Laser PCB Depaneling Machine,AC 220V Laser Depaneling Machine |
||

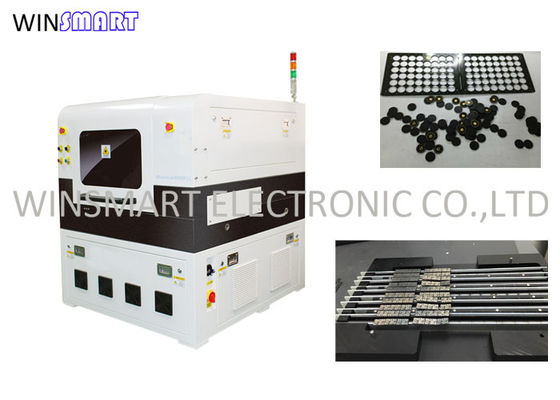

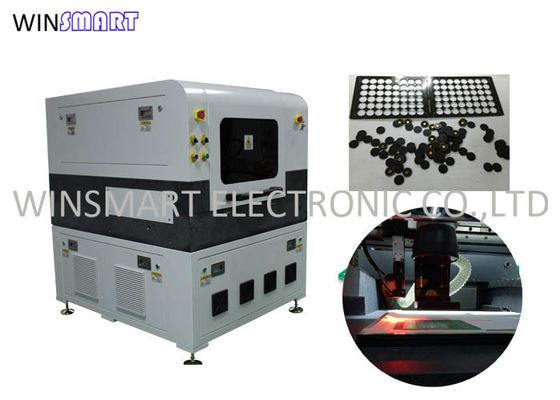

PCB Laser Cutter Stress-Free Laser System For Depaneling Rigid and Flex PCBs
Description:
Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength: 355nm
Rated power: 10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Traditional Depaneling Solution Disadvantages:
Lower quality of cuts
PCB damage due to accumulated debris
Constant need for new bits, dies and blades
Not useful for boards < 500 µ
Design limitation—inability to cut complex, multidimensional PCBs
Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmx460mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
Clean and Precise Cutting:
Lasers make clean, burr-free and precise cuts against the edge of circuits and other important components—improving overall design flexibility without damaging the substrate. Because you don’t have to reorder parts or sharpen bits and blade, laser systems are also more cost effective.
Application:
Our Advantages:
Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.
