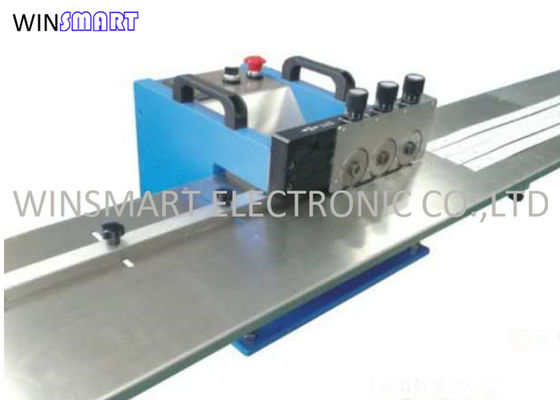

LED Bench Top PCB Separator Machine For Aluminum PCB Boards

LED Bench Top PCB Separator Machine For Aluminum PCB Boards
LED Bench Top PCB Separator Machine For Aluminum PCB Boards LED Bench Top PCB Separator Machine For Aluminum PCB Boards

Large Image :  LED Bench Top PCB Separator Machine For Aluminum PCB Boards

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTD3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

LED Bench Top PCB Separator Machine For Aluminum PCB Boards

Description
Color: Blue PCB Material: FR1, FR4, CEM1, CEM3, MCPCB
PCB Thickness: 0.4-5mm Cutting Length: No Limit
Blade Life Time: 6-12 Months Blade Sets: 3
Condition: New Name: LED PCB Separator
High Light:

Bench Top PCB Separator Machine

,

Aluminum PCB Boards PCB Separator Machine

,

FR4 PCB Separator Machine

LED Bench Top PCB Separator Machine For LED FR4 Aluminum PCB Boards

Equipment designed to minimize board stress and avoid component damage.

Three pairs of precision beveled cutting blades ensure the board does not bend or deform.

The guide can be adjusted vertically to suit different LED boards.

Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.



LED PCB Separator Specification:

Model SMTD3
Machine Dimension 400x400x330mm
Platform Dimension 2400x300x200mm
Max Cutting Length No limit
PCB Material FR4, MCPCB, Copper Boards
Cutting Speed 0-500mm/s
PCB Thickness 0.6-3mm
Power 220/110V
Machine Weight 44kgs
Wooden Case Dimension 116x67x58cm
Gross Weight 76kgs


LED PCB Separator Features:

1. Separates panels up to 0.1"

2. The longest panel: No limit

3. Minimum board thickness of 0.024"

4. Shears boards safely with parts as close as 0.02" to score line.

5. Only allow correct boards placement to avoid mistakes.

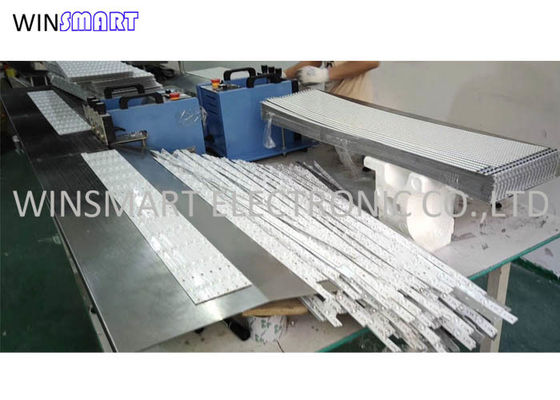

LED PCB Separator Used in Customers' Workshop:

LED Bench Top PCB Separator Machine For Aluminum PCB Boards 0
