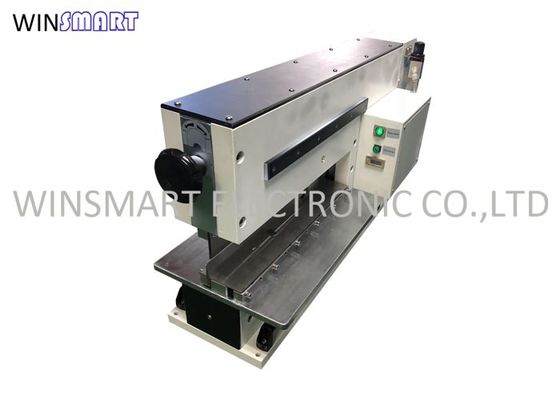

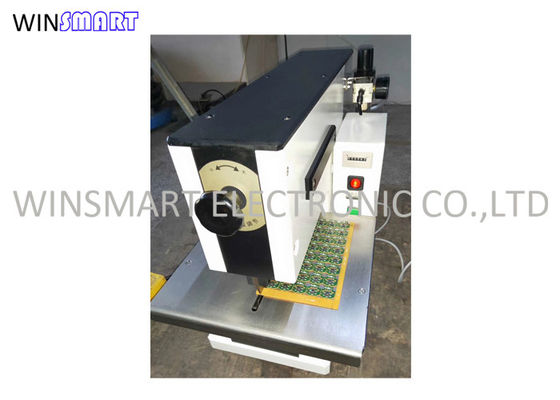

220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control

220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control
220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control 220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control

Large Image :  220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

220kgs PCB Separator Machine 0.7MPa Copper Boards With Pneumatic Footpedal Control

Description
Color: Blue PCB Type: Rigid PCB Boards
PCB Thickness: 0.4-5mm Blade Length: 400mm
Blade Material: Japan High Speed Steel Advantage: Low Cutting Stress
Condition: New Name: PCB Separator
Highlight:

Pneumatic footpedal control PCB Separator Machine

,

0.7MPa PCB Separator Machine

,

220kgs PCB Separator Machine

Pnematic PCB Separator Machine Allows Max 70mm Height Component



It is widely used in the Manufacturing Machinery Electronic Products Machinery industry.



Features:

Dual V shape blades for a perfect board cut without bending or tension.

Pneumatic footpedal control.

Shears boards safely with parts as close 0.02" to score line, including ceramic capacitors.

The system only allow correct board placement to avoid mistakes.



Specification:

Model SMTPD2
Machine Dimension 880x300x440mmmm
Max Cutting Length 400mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 220kgs



Options:

Modified blades

Safety enclosure custom designed

Tray to safety catch boards after cutting



Spare Parts Available:

Linear blades replacement

Blade resharpening service available.



FAQ:

Q: What is life time of blade?

A: 10,000-30,000 cutting times, depends on PCB material.

Q: What is PCB material available?

A: FR1, FR4, CEM1, CEM3, aluminum.

Q: What is max PCB thickness?

A: 5mm.

Q: What is cutting speed?

A: It is controlled by operator, 0-400mm/s.

Q: How many times of blades re-sharpening?

A: 2-3 times.
