Product Details:
|
| Color: | Blue | PCB Material: | FR1, FR4, CEM1, CEM3, MCPCB |
|---|---|---|---|
| PCB Thickness: | 0.4-5mm | Max Component Height: | 70mm |
| Blade Type: | Linear Blade | Advantage: | Low Cutting Stress |
| Condition: | New | Name: | V Cut PCB Depaneling Machine |
| High Light: | CEM V Groove Cutter Machine,PCB V Groove Cutter Machine,Linear Blade V Cut PCB Depanelizer |
||

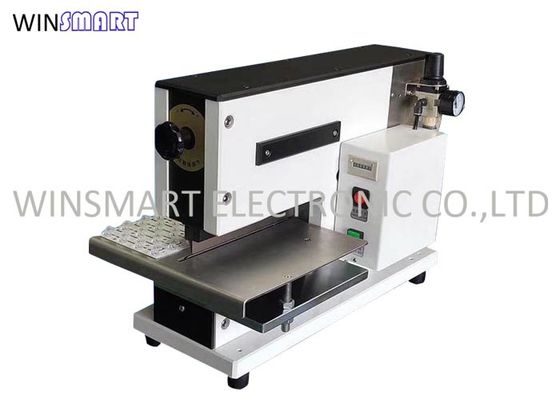

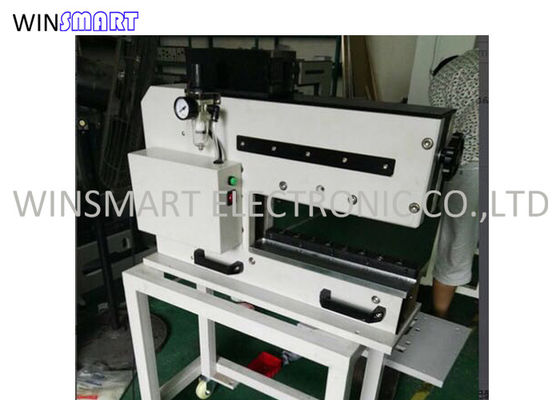

Pneumatic V Cut PCB Depaneling Machine Linear "V" Cut High Volume PCB Cutter
Features:
1. Dual V shape blades for a perfect board cut without bending or tension.
2. Pneumatic footpedal control.
3. Shears boards safely with parts as close 0.02" to score line, including ceramic capacitors.
4. The system only allow correct board placement to avoid mistakes.
Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
Options:
Modified blades
Safety enclosure custom designed
Tray to safety catch boards after cutting
Spare Parts Available:
Linear blades replacement
Blade resharpening service available.
Application:
