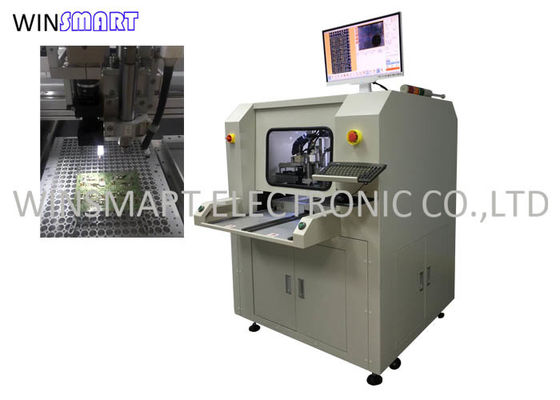

Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision

Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision
Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision

Large Image :  Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision

Description
Fixture Quantity: 2 PCB Material: FR4, Aluminum
PCB Thickness: 0.8-3.0mm Application: Tab PCBA Panel
Cutting Precision: ±0.05mm Max PCB Size: 300x350mm
Routing Bit: Dia 0.8-2.5mm Warranty: 2 Years
On-site Installation: Yes Product Name: PCB Router
Highlight:

0.8mm Routing Bit PCB Router Machine

,

Industrial IPC PCB Router Machine

,

0.01mm PCB Cutting Machine

Automatic PCB Router Machine For High Speed And Accuracy Cutting



PCB router depanel with high precision controlling system can move quickly for cutting or separate the PCB printed circuit board,increase productivity while maintaining high accuracy.

It is widely used in the Manufacturing Machinery Electronic Products Machinery industry.



Automatic PCB Router Machine Parameters:

Router Machine
X/Y Cutting Speed 0 ~100mm/s
Repeatability precision ± 0.01mm
X/Y1/Y2/Z control mode Industrial IPC and PC
X/Y1/Y2/Z driven mode AC Servo Motor
Operation and data storage PC
Cutting Precision ± 0.05mm
Spindle Speed 60000rpm(Germany KKAVO)
Power Supply 220V/110V
Air Pressure 4.5kg/cm 2
Power Rate 1.8KW
Vacuum Cleaner
Mode Up or Bottom
Power Supply 380V
Up Cleaner Dimension L650*W400*H1350mm
Bottom Cleaner Dimension L665*W635*H1650mm


Automatic PCB Router Machine Working Area:

Working Table Model No. Description Working Area Machine Dimension(mm) Machine Weight(kgs)
Dual SMTR05 Standard 300x350mm 1382x1056x1500 840
Dual SMTR05 Larger 500x500mm 1682x1356x1500 940

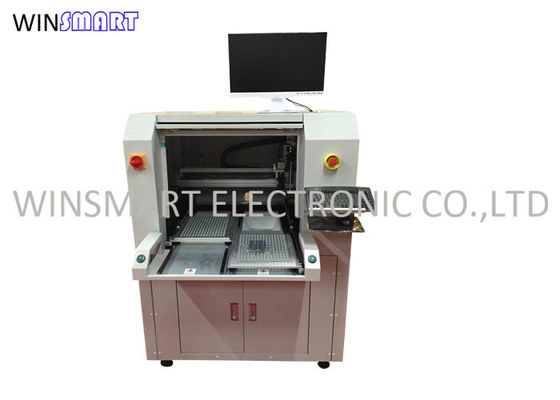

Automatic PCB Router Machine Two Tables:

Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision 0



Automatic PCB Router Machine Includes:

Vacuum cleaner

Routing spindle

4 aix step motor and driving system

Milling cutter 10pcs

1 year parts warranty



Automatic PCB Router Machine Packaging:

Dia 0.8mm Routing Bit PCB Router Machine , PCB Cutting Machine 0.01mm Repeatability Precision 1
