Product Details:
|
| Vacuum Cleaner: | Top Or Bottom | Application: | PCBA Cutting |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Routing Bit: | Dia 0.8-3.0mm |
| Cutting Precision: | ±0.05mm | Cutting Way: | Top Cutting |
| New: | Yes | Product Name: | PCB Router Depanel |
| Highlight: | Wind Cooling PCB Depaneling Router Machine,Two Tables PCB Depaneling Router Machine,Stand Alone PCB Depaneling Cutter |
||
Stand Alone PCB Router Depanel Machine Two Tables PCBA Depanelization
PCB router depanel with high precision shaft system can move quickly for cutting or separate the PCB printed circuit board,increase productivity while maintaining high accuracy.
It is widely used in the Manufacturing Machinery Electronic Products Machinery industry. We always provide customers with reasonable and efficient one-stop solutions based on the professional attitude.
Stand Alone PCB Router Parameters:
| I. Hardware | |
| SPINDLE | SycoTec(KAVO) 4025HY |
| CCD | Sony 520 line industrial cameras |
| LENS | Computer EX2C |
| Screw | TBI Precision ground ball screw imports |
| Guide | HIWIN widening Imported linear guide rail |
| MOTOR | Panasonic |
| I/O CONTRONL CARD | HFC PCI-9074 |
| DRIVER CONTRONL CARD | HFC PCI-9074 |
| I/O CARD | PCI-9074-64pcs/-38pcs |
| Static cleanup | STATIC-ST401A Series |
| Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
| Machine interface | AOC LCD17",Logitech mouse |
| 2. software | |
| Control system | Windows XP Professional (Service3,v.3244) |
| Operation GUI | English Windows XP |
| Program edit | Inline |
| Vision system | CCD AOTU offset |
| Control system | F 1.2.88 version |
Stand Alone PCB Router Specification:
| Overall | |
| Dimensions(W*D*H) | 1250mm*1650mm*1450mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 320*320mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |

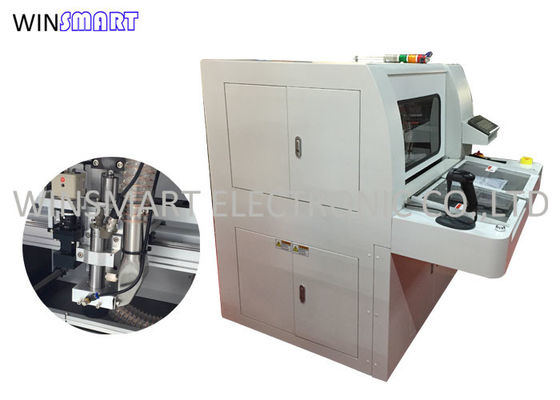

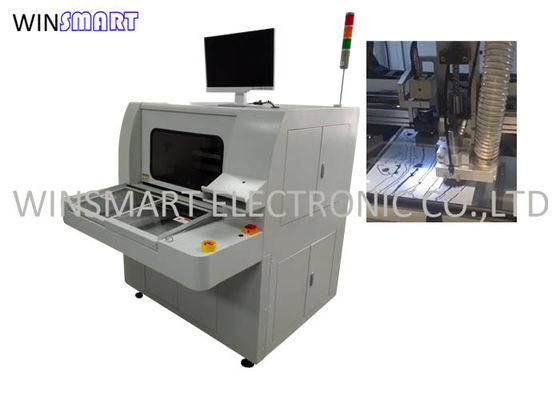

Stand Alone PCB Router Photo:
Stand Alone PCB Router Includes:
Vaccum cleaner x 1pc
SycoTec spindle x 1pc
Routing bit x 10pcs
Instruction manual x 1pc
Operation videos
Stand Alone PCB Router Shipping Ways
FedEx/DHL/UPS/TNT Express
Ocean
Air
Railway
Truck
