0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine

Brand Name:	Winsmart
Model Number:	SMTR09
MOQ:	1 Set
Price:	USD20000-80000
Packaging Details:	Plywood case
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Vacuum Cleaner:

Top Or Bottom

PCB Material:

FR4, Aluminum

PCB Thickness:

0.8-3.0mm

Routing Bit:

Dia 0.8-3.0mm

Cutting Precision:

±0.05mm

Max PCB Size:

300x300mm

Feature:

Economic

Cutting Speed:

1-100mm/s

Product Name:

PCBA CNC Routing Machine

Supply Ability:

100 Sets/Month

Highlight:

Pcb Cnc Router

0.001mm Pcb Cnc Router

Pcb Depanelizer Machine

Product Description

PCBA CNC Routing Machine Automatic Automatic PCB Milling Machine

PCBA CNC Routing Machine Advantages:

X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2 sliding tables provide simultaneously in-and-out movement to reduce the tack time for better productivity.

AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

PCBA CNC Routing Machine Parameters:

Overall
Dimensions(WDH)	1250mm1650mm1450mm
Weight	750KG
Height offset	60~110mm
Manipulator
Motor type	JiaBao series
Positioning repeatability	0.001mm
Axis working area(max)	650mm560mm50mm
Work station
PCB fixation	standard,specialization
PCB loading/unloading	manual
PCB size (max)	320*320mm
PCB thick (max)	5mm
Fixturing
Rigidity fixturing	Customized make fixture
Fixturing fixation	machinery
Spindle Motor
Power	150W
Spindle	60000rpm/min
Protect	self/wind cooling
Change cutter	Specialization
Routing capability
Cutting speed(max.)	80mm/s
Driving speed(max.)	2500mm/s
Precision of cutting	0.01mm
Vacuum System
Vacuum power	3.5KW AC 380V
Vacuum	plumb
Utilities
Power	2.0KW AC380V
Air supply	4-6KG/cm2
Programming
Program edit	Inline
Function edit	Line,arc,circula,U-curve
Program storage	HDD
Vision system	SONE colour CCD
milling cutter offset	AUTO
Vacuum setup	AUTO
Operation Monitors
Iindicator	Iindicator Machine state
tool check	Automatic detection tool life, the use of time testing
Motor protect	Have overheating, overload, low voltage protection function
motor over loading check	Have Overload, the line is normal, low voltage protection function
Tool usable time	Automatic detection tool life,
Data statistic	Separate board model, separating count, diverse counting methods
Error record	Software automatically records all alarms memory of machines
III. Accuracy
Axis precision	0.001mm
Cutting precision	0.1mm
IV. Safety
Working area protect	With four sealed protection
Door sensor	Front and rear safety door micro-switch sensor (optional)
Exigency stop button

PCBA CNC Routing Machine Display:

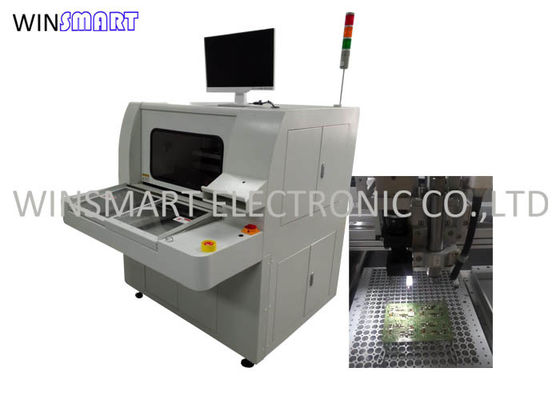

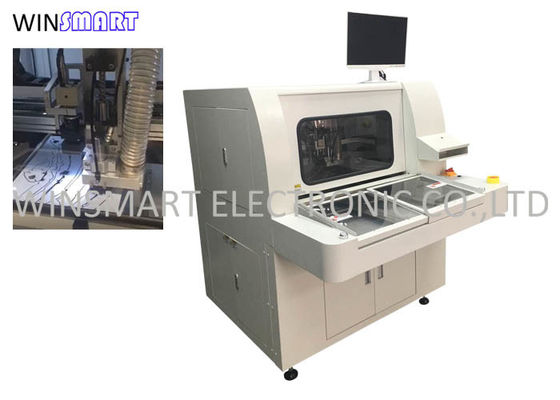

0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine 0

PCBA CNC Routing Machine Includes:

Vaccum cleaner x 1pc

SycoTec spindle x 1pc

Routing bit x 10pcs

Instruction manual x 1pc

Operation videos
