Product Details:
|
| Cleaner: | Yes | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Advantage: | Bench-top Type |
| Cutting Precision: | ±0.05mm | Max PCB Size: | 300x300mm |
| Feature: | Economic | Cutting Speed: | 1-100mm/s |
| New: | Yes | Product Name: | Desktop PCB Depaneler |
| Highlight: | 100mm/s PCB Depaneling Router Machine,Bench Top PCB Depaneling Router Machine,40000rpm PCB Cutting Machine |
||

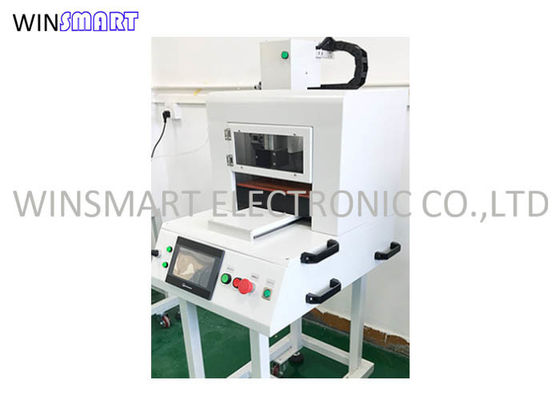

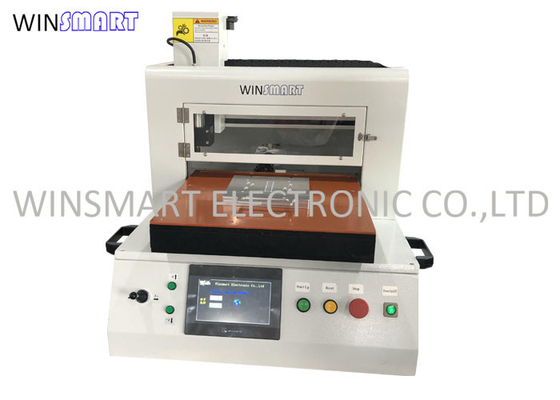

Desktop 40000rpm Mini PCB Depaneling Router Machine PCB Depaneler
The desktop PCB depaneling router machine is a compact and high-speed device designed specifically for PCB depaneling tasks. With its miniature size, it can easily fit on a desktop or workbench, making it suitable for small-scale production environments or prototyping labs. This machine utilizes a high-speed spindle that operates at 40,000 revolutions per minute (rpm), enabling precise and efficient cutting of PCBs. It is a valuable tool for electronics manufacturers and hobbyists alike.
Desktop PCB depaneler Specifications:
| Drive system motor | servo / stepper motor |
| Spindle | domestic / imported spindle |
| Cutting performance | 500mm / s |
| Drive system repeatability | ± 0.02mm |
| Cutting speed | Max 100mm / S depends on PCB material and cutting quality |
| Resolution | ±0.01mm |
| XYZ Stroke | 300 * 300 * 100mm |
| PCB positioning | special or standard fixture |
| Handling method | manual mode |
| Thickness of circuit board | 0.4mm-4mm |
| Spindle power | 0.5 kW |
| Spindle speed | 40,000 rpm |
| Machine size | 650*550*615mm |
| Weight | 73KG |
Desktop PCB depaneler Details:
1. English interface
2. Friendly programming
3. Customized fixture
Desktop PCB depaneler Features:
1. Friendly interface make programming very easy.
2. Boards are separated without bending or breaking.
3. Euipped with quality, air cooling long service life routing sprindle.
4. Vaccum cleaner provides clean and low noisy work enviroment.
5. Moving speed can reach 500mm/s, routing speed can reach 100mm/s greatly improving producticon efficiency.
6. Bench-top Automatic Router adopts x,y,z step motor and driving system ensuring that the machine run smoothly and precisely.
7. Routing accuracy: 0.05mm.
8. The machine is designed for easy maintenance, with accessible components and mechanisms that facilitate cleaning and upkeep.
9. The machine is equipped with safety features such as protective covers and emergency stop buttons, ensuring the safety of the operator during operation.
Desktop PCB depaneler Includes:
Vaccum cleaner
Routing spindle
3 aix step motor and driving system
Routing bit 10pcs
2 years warranty
Desktop PCB depaneling router machine safety measures includes:
The PCB router machine incorporates several safety features to ensure the well-being of the operator during operation.
Protective Covers: The machine is equipped with sturdy protective covers that enclose the cutting area. These covers prevent accidental contact with moving parts, such as the spindle, reducing the risk of injuries.
Emergency Stop Button: The machine is fitted with an easily accessible emergency stop button. In case of an emergency or any hazardous situation, pressing this button will immediately halt all machine operations, ensuring a quick and safe shutdown.
Safety Interlocks: The machine may incorporate safety interlock mechanisms that prevent operation if certain conditions are not met. For example, the machine may require the protective covers to be securely closed before it can start functioning,
Warning Signs and Labels: The machine is labeled with clear warning signs and instructions to inform the operator about potential hazards and safe operating procedures. These signs remind the operator to follow proper safety protocols while using the machine.
