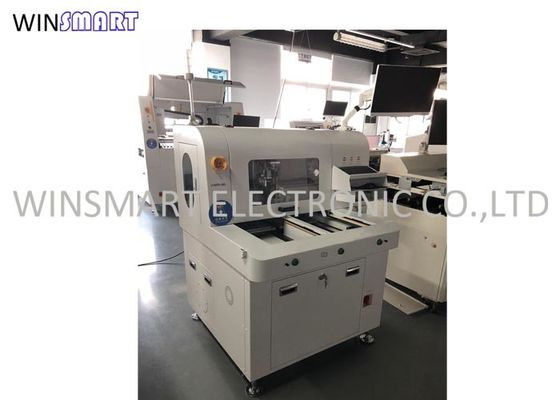

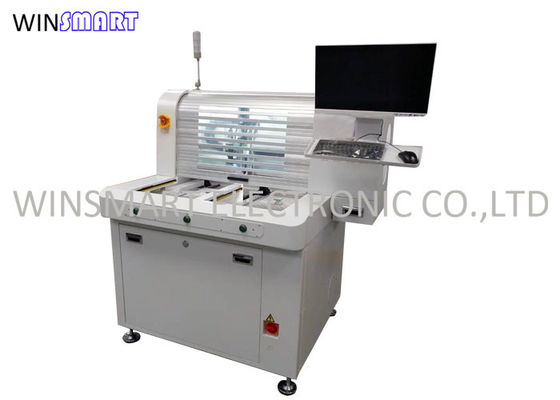

PCB Depaneling Router Machine For LED Industry

PCB Depaneling Router Machine For LED Industry
PCB Depaneling Router Machine For LED Industry PCB Depaneling Router Machine For LED Industry

Large Image :  PCB Depaneling Router Machine For LED Industry

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

PCB Depaneling Router Machine For LED Industry

Description
Fixture: Customized PCB Material: FR4, Aluminum
PCB Thickness: 0.8-3.0mm Application: Tab PCBA Panel
Cutting Precision: ±0.05mm Max PCB Size: 300x350mm
Feature: Top Cutting Vacuum Cleaner: 3HP/2.2KW
Routing Bit: Dia 0.8-2.5mm Warranty: 2 Years
On-site Installation: Yes Product Name: PCB Depaneling Router
Highlight:

LED Industry PCB Depaneling Router Machine

,

Customized PCB Depaneling Router Machine

,

Offline PCB Cutter Machine

Offline PCB Depaneling Router Machine PCBA Router Machine for LED Industry



PCB Depaneling Router Features:

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control(XY moving at the same time)

6. Easy teaching with image processing



PCB Depaneling Router Specification:

Router Machine
X/Y Cutting Speed 0 ~100mm/s
Repeatability precision ± 0.01mm
X/Y1/Y2/Z control mode Industrial IPC and PC
X/Y1/Y2/Z driven mode AC Servo Motor
Operation and data storage PC
Cutting Precision ± 0.05mm
Spindle Speed 60000rpm(Germany KKAVO)
Power Supply 220V/110V
Air Pressure 4.5kg/cm 2
Power Rate 1.8KW
Vacuum Cleaner
Mode Up or Bottom
Power Supply 380V
Up Cleaner Dimension L650*W400*H1350mm
Bottom Cleaner Dimension L665*W635*H1650mm


PCB Depaneling Router Working Area:

Working Table Model No. Description Working Area Machine Dimension(mm) Machine Weight(kgs)
Dual SMTR05 Standard 300x350mm 1382x1056x1500 840
Dual SMTR05 Larger 500x500mm 1682x1356x1500 940




PCB Depaneling Router Other Models:

PCB Depaneling Router Machine For LED Industry 0

PCB Depaneling Router Details:

PCB Depaneling Router Machine For LED Industry 1PCB Depaneling Router Machine For LED Industry 2PCB Depaneling Router Machine For LED Industry 3PCB Depaneling Router Machine For LED Industry 4



PCB Depaneling Router FAQ:

1.A: What is life time of routing bit?

   Q:150-300 meters.

2.A: Can this model cut Aluminum PCB boards?

   Q: Yes, it can.

3.A: What about PCB positioning?

   Q: Use customized jig for positioning.

4.A:What is the spindle for the inline PCB router?

   Q:Germany SycoTec 4025.

5.A:How to package it?

   Q:Router and cleaner is packaged into separated wooden case after vacuum.

6.A:Is on-site installation and training available.

   Q:Yes, it is available.

7.A:What is your terms of delivery?

   Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.



PCB Router Packaging:

PCB Depaneling Router Machine For LED Industry 5
