Product Details:
|
| Axis: | 3 | Working Stroke: | 500x300x300x100mm |
|---|---|---|---|
| Power: | 110V Or 220V | Locking Speed: | 2 Seconds Per Screw |
| Torque: | According To Acutal Application | Type: | Suction |
| Name: | Automatic Screwdriver Machine | ||
| High Light: | PLC Robotic Screwdriver Machine,Double Y Design Robotic Screwdriver Machine,5 kg/cm2 Automatic Screw Feeding System |
||

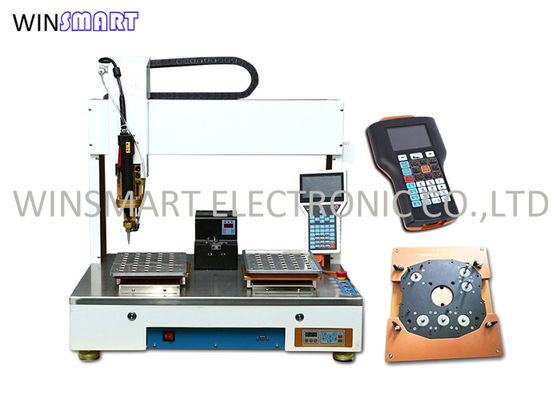

Automatic Screw Feeding System Double Platform Robotic Screwdriver Machine

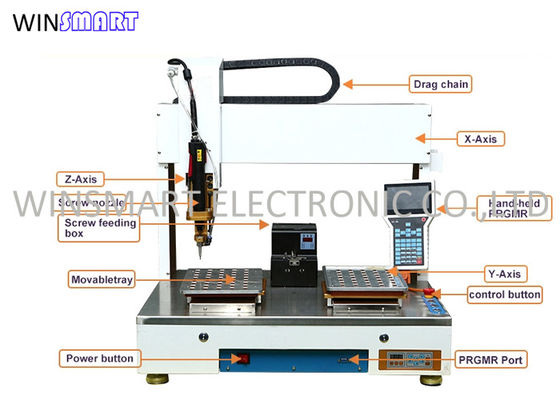

Automatic Screwdriver Machine Features:
1.With intelligent detection function, can automatically detect leakage lock, lock, slide tooth, double Y design, and able to work alternately
2.Strong flexibility, the standard universal fixture applicable model of screw lock.
3.Strong commonality, replace the screw conveyor modules can be adapted to M1.0 - M4.0 screw lock.
4.Equipment for small, save space, reduce the plant resources. Easy to put into the production line, and before the standard after the function.
5.Double Y design, alternating operation, maximize production efficiency, production of profit maximization, the lowest cost of production.
6.Application: Especially suitable for all kinds of screw lock pay of consumer electronics, such as calculators, navigation, audio, camera, laptop, tablet PC, learning machine, small home appliance, etc.
Automatic Screwdriver Machine Specifications:
| Working Range | 500(X)*300(Y1)*300(Y2)*100(Z)mm |
| Drive mode | 3 axis driver |
| Position Accuracy | ±0.02mm |
| Control System | PLC + TP |
| Screw Feeding | absorption type |
| Operation Method | by Programming |
| Program Memory | 999 groups |
| Voltage | 110-220VAC,50HZ |
| Air Pressure | 4-5kg/cm2 |
| Machine Size | 620*600*720mm |
| Machine Weight | 90kgs |
Automatic Screwdriver Machine Fixtures:
Automatic Screwdriver Machine Application Screws:
Automatic Screwdriver Machine Packaging Details:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Pack into wooden case
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make fixture and test it with the punching machine
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
