Product Details:
|
| Driven Mode: | Stepper Motor | Dimension: | 580x600x725mm |
|---|---|---|---|
| Net Weight: | 65kgs | Soldering Head: | 1 |
| Axis: | 4 | Control: | PLC |
| Working Stroke: | 400(X)x400(Y)x80(Z)x360°(R) | Name: | LED Robotic Soldering Machine |
| High Light: | SMD LED Robotic Soldering Machine,LCD Display Automatic Soldering Robot,8 AXIS PCB Soldering Machine |
||

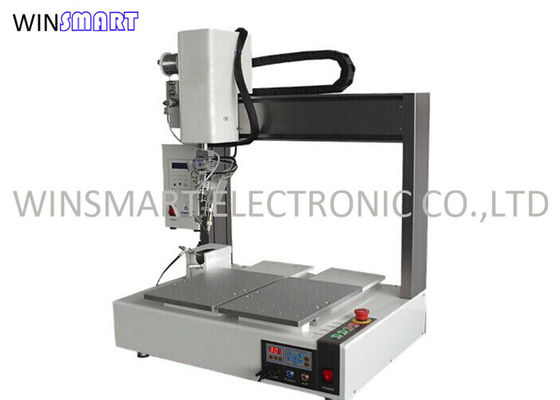

8 AXIS Irons Robot Flux Automatic Tin Solder SMD Electric LED Robotic Soldering Machine
Robotic Soldering Machine Features:
1. Perfect soldering process setting, with spot welding and welding function. Each instruction has independent preheating, tin length, preheating time, welding time, tinning time, lifting height and other solder parameters..
2. Perfect soldering process setting, with spot welding and drag welding function. Each instruction has independent preheating, solder wire length, preheating time, soldering time, tinning time, lifting height and other solder parameters.
3. Support PLT format files, realize direct importing for easier operation.
4. The machine can be run offline or independently, and the welding parameters are saved in the SD card to facilitate parameter copying and saving between devices.
5. 2G storage space, can store several soldering programs, each program supports 9999 soldering instructions.
6. There are two options for solder wire feeding, broken tin function, no broken tin function.
7. The display adopts 320x240 high-resolution color screen, English operation interface, easy to operate.
Robotic Soldering Machine Specifications:
| Model | SMTSR114 |
| Dimension | 580mm*600mm*725mm |
| Weight | 60Kg |
| Control | PLC |

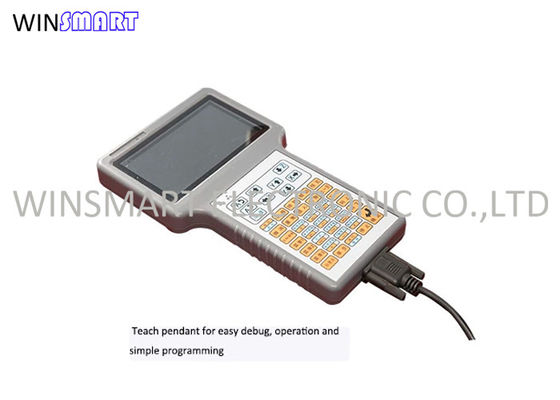

| Programming | Teaching box |
| Driving mode | Stepper motor |
| Stroke | 400(X)x400(Y)x80(Z)x360°(R) |
| Soldering head | 1 |
| Repeatability | ±0.02mm(X/Y/Z), ±0.02°(R) |
| Temp. Range | 0-500℃ |
| Solder Wire Spec | ￠0.3-1.6mm |
| Number of axes | 4 |
| Working pressure | 0.4~0.6Mpa(No water mist) |
| Power | AC110V/220V 300W |
| Display | LCD |
Robotic Soldering Machine Details:
Robotic Soldering Machine FAQ:
