Product Details:
|
| Color: | Blue | PCB Material: | FR1, FR4, CEM1, CEM3, MCPCB |
|---|---|---|---|
| PCB Thickness: | 0.4-5mm | Blade Length: | 200/400/580mm |
| Blade Type: | Linear Blades | Warranty: | 2 Years |
| Name: | PCB Depaneler | ||
| High Light: | Winsmart V Cut PCB Depaneling Machine,FR4 V Cut PCB Depaneling Machine,V Cut PCB Depaneler |
||

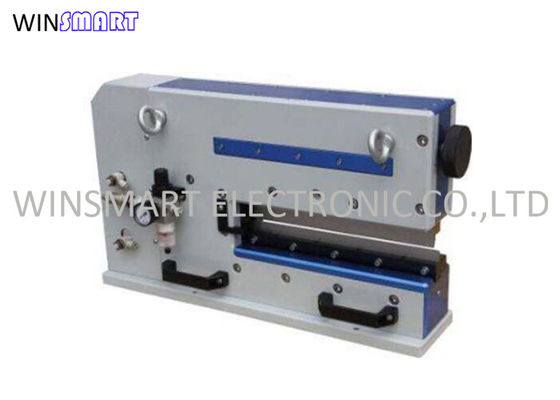

Low Cutting Stress V-groove Guillotine PCB Separator Machine with Two Linear Blades
V-groove Guillotine PCB Separator Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm / 520x300x440mm / 500x300x440mm |
| Max Cutting Length | 330mm / 200mm / 130mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs / 100kgs / 80kgs |
V-groove Guillotine PCB Separator Features:
1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet,
aluminum circuit board.
2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent
damage to precision parts.
4. Allow max component height 70mm.
5. Blades can be re-sharpened.
6. Cutting stress is less than 500 uE.
V-groove Guillotine PCB Separator Details:

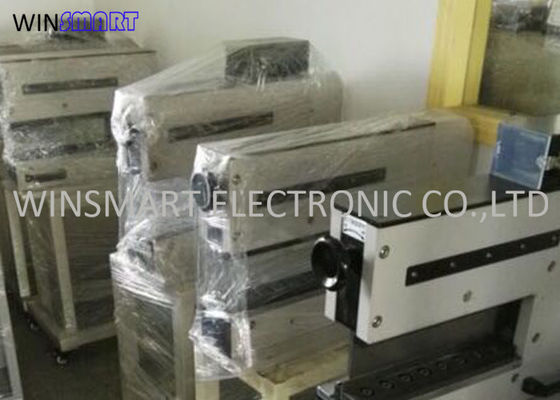

V-groove Guillotine PCB Separator Packaging:
V-groove Guillotine PCB Separator FAQ:
