Product Details:
|
| Color: | White | PCB Material: | FR1, FR4, CEM, Aluminum Boards |
|---|---|---|---|
| PCB Thickness: | 0.4-3.5mm | Ceritificate: | CE |
| Cutting Precision: | ±0.05mm | Max PCB Size: | 460x410mm |
| Name: | PCB Depaneling Router | ||
| Highlight: | SMT PCB Depaneling Router Machine,Single Table PCB Depaneling Router Machine,0.01mm PCB Cutting Machine |
||

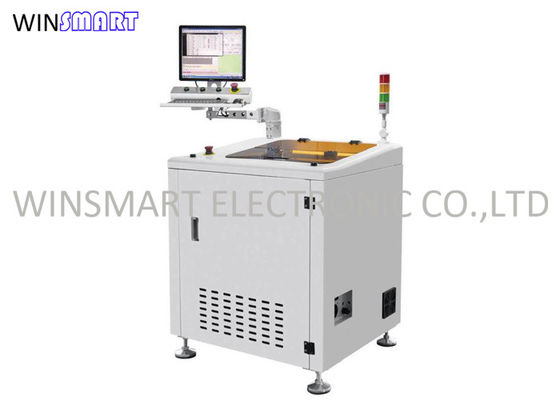

Automotive Electronic SMT PCB Depaneling Router Machine, Optional Dual/Single Table
PCB Depaneling Router Description:
PCB depaneling routers are specialized machines used in the electronics industry to separate individual printed circuit boards (PCBs) from larger panels or arrays. These routers are equipped with high-speed rotating cutting tools that can accurately cut through the material of the PCB without damaging the components or circuit traces.
PCB depaneling routers play a crucial role in the PCB manufacturing process by enabling efficient and precise separation of individual boards, contributing to the production of high-quality electronic devices.
PCB Depaneling Router Features:
1. Optional single/dual platform

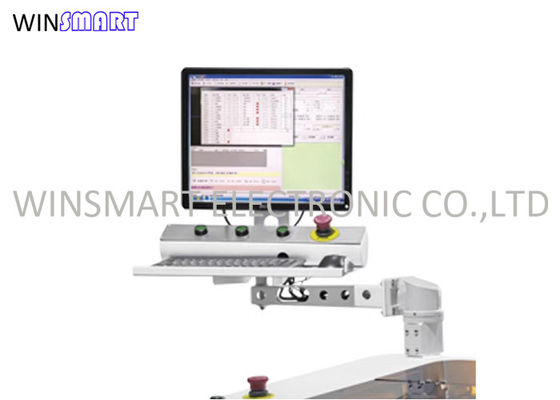

2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
PCB Depaneling Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |

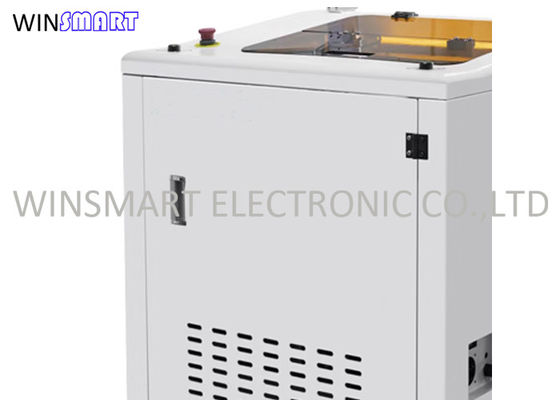

PCB Depaneling Router Dimension:
Small footprint size to save workshop space.
PCB Depaneling Router Details:
1. Computer programming, visual system. Programmable, with compensation function and dust collection.

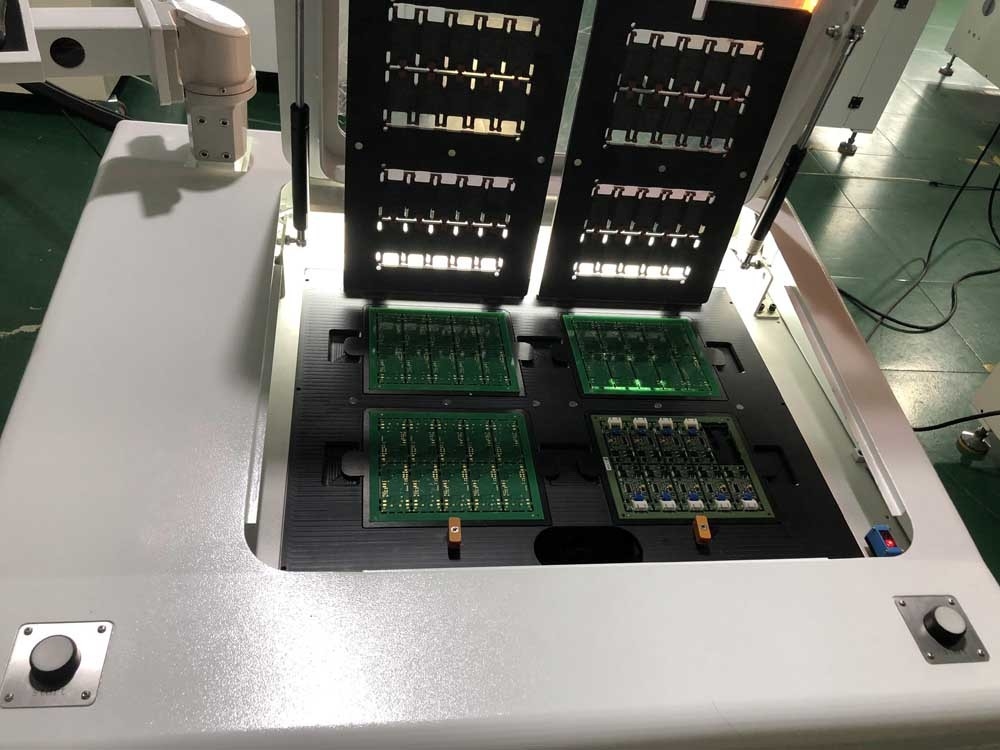

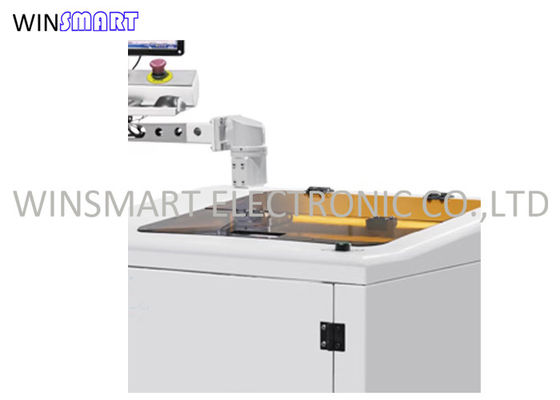

2. Allow max 460x460mm PCBA. Can work as dual tables, but also single table. Support 2 different types of boards at the same time.
3. Open working design for loading and unloading, can be equipped with mainpulator to realize unnanned.
PCB Depaneling Router FAQ:
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
