Product Details:
|
| Color: | White | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Advantage: | No Fixture Required |
| Cutting Precision: | ±0.05mm | Max PCB Size: | 350x350mm |
| Feature: | Bottom Cutting | Product Name: | PCB Depaneling Router |
| Highlight: | SMEMA PCB Separator Machine,AC380V PCB Cutting Machine,Self Cooling PCB Depaneling Router Machine |
||

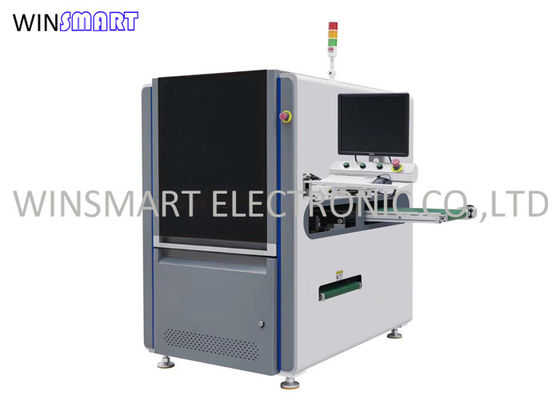

Inline PCB Depaneling Router Machine PCB Separator Without Fixture
Inline PCB Depaneling Router Overview:
Full automatic inline router system, with loader and unloader for ATE test line, high speed spindle, low stress to separate PCBA and ensure prevision and cleanliness, high volume production helper.
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
Inline Configuration: Inline PCB depaneling router machines are designed to be integrated into automated assembly lines, allowing for seamless and continuous PCB separation within the manufacturing process.
High Precision Routing: These machines feature high-precision routing capabilities to accurately cut through the panelized PCBs and separate them into individual boards without causing damage to components or circuits.
Multiple Cutting Options: Inline depaneling router machines may offer various cutting options, such as straight-line routing, contour routing, and V-groove cutting, to accommodate different PCB designs and requirements.
Automatic Tool Change: Some machines are equipped with automatic tool change systems that allow for quick and easy switching between different cutting tools, enhancing flexibility and efficiency in the depaneling process.
Vision System Integration: Advanced machines may include a vision system for alignment and inspection, ensuring precise cutting along designated paths and improving overall accuracy during the depaneling process.
Conveyor System: An integrated conveyor system helps to move the panelized PCBs through the cutting area smoothly and consistently, ensuring proper alignment and positioning for accurate separation.
Control System: These machines are controlled by user-friendly interfaces that allow operators to set cutting parameters, adjust cutting depths, and monitor the depaneling process in real-time.
Safety Features: Inline PCB depaneling router machines are equipped with safety features such as emergency stop buttons, safety guards, and interlocks to protect operators and prevent accidents during operation.
Inline PCB Depaneling Router Specification:
| Model Number | SMTIR812 |
| Machine Size | 1060(L)x1356(W)x1570(H)mm |
| Machine Weight | Approx 1000kgs |
| Max PCB Size | 350x350mm (standard) |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left -> Right |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Automatic |
| Communication Signal | SMEMA |
| PCB Positioning | Upper and lower guide rail clamping |
| Picking System | 360 degree rotary clamp system+Vacuum Suction Nozzles |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Yes |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Waste Collection Way | Outlet track |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm2 |
| Power Supply | AC380V, 50/60Hz, 3KW |
PCB Depaneling Router Advantages:
Increased Throughput: By integrating into automated assembly lines, inline depaneling router machines help streamline the PCB separation process, leading to higher throughput and improved production efficiency.
Precision and Accuracy: These machines offer high precision and accuracy in cutting, ensuring that PCBs are separated cleanly and accurately without causing damage to components or circuits.
Reduced Labor Costs: Automating the depaneling process with an inline machine reduces the need for manual labor, resulting in cost savings and increased productivity in electronics manufacturing.
Enhanced Quality Control: Inline depaneling router machines contribute to improved quality control by consistently producing accurate and uniform PCB separations, reducing the risk of defects in the manufacturing process.
Flexibility and Versatility: With the ability to handle various cutting options and adapt to different PCB designs, inline PCB depaneling router machines offer flexibility and versatility to meet diverse manufacturing requirements.
Minimized Material Waste: By cutting PCBs with precision, these machines help minimize material waste during the depaneling process, optimizing material usage and reducing costs in production.
Inline PCB depaneling router machines provide advanced features such as high precision routing, automation, integration into assembly lines, increased throughput, reduced labor costs, enhanced quality control, flexibility, and minimized material waste, making them essential tools for efficient and accurate PCB separation in electronics manufacturing.
PCB Depaneling Router FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the inline PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
