Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards

Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards
Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards
Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards

Large Image :  Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTID3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards

Description
Warranty: 1 Year CCD System: Yes
Mode: Inline Max Panel: 300x300mm(Could Be Customized Made)
Blade Life: 100,000 Times Blade Material: SKH51
Cutting Accuracy: ±0.1mm Cutting Angle: 90°
Cutting Length: Customizable Cutting Method: V-Cutting & Routing
Cutting Speed: High Speed Cutting Thickness: 0.2-3.2mm
Cutting Width: 2-6mm Noise Level: ≤70dB
Power Supply: 220V/50Hz Product Name: PCB Depaneling Separator
High Light:

Multi Type PCB Depaneling Separator

,

2 Spindles PCB Depaneling Separator

,

Tab Boards PCB Separator Machine

Multi Type PCB Depaneling Separator, 2 Spindles for V-cut & Tab Boards





PCB Depaneling Separator Description:

The Multi Type PCB Depaneling Separator with 2 Spindles is a specialized machine designed for the separation of PCBs, specifically V-cut and tab boards. It features two spindles to accommodate different types of PCBs, providing efficient and precise depaneling capabilities. This machine is versatile and suitable for a wide range of PCB manufacturing processes.

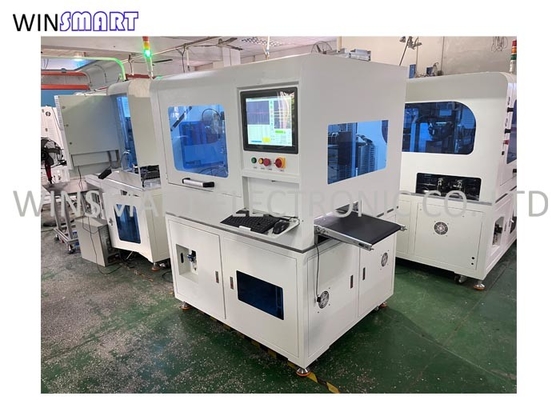

Multi Type PCB Depaneling Separator 2 Spindles For V-Cut & Tab Boards 0

PCB Depaneling Separator Functions:

The primary function of the Multi Type PCB Depaneling Separator with 2 Spindles is to separate PCBs, specifically V-cut and tab boards. It performs the following functions:

  1. V-cut Separation: The machine utilizes one of the spindles to perform V-cut separation of PCBs. It follows the predefined V-cut lines on the boards and separates them accurately without causing stress or damage.

  2. Tab Board Separation: The machine employs the other spindle to separate tab boards. It is designed to remove the tabs connecting individual boards while maintaining the integrity of each PCB.

  3. Customizability: The machine allows for customization based on specific PCB designs and requirements. It can be easily adjusted to accommodate different board sizes, shapes, and thicknesses.

PCB Depaneling Separator Features:

  1. Dual Spindles: The inclusion of two spindles enables the machine to handle both V-cut and tab boards, offering versatility and efficiency in PCB depaneling processes.

  2. Precise Separation: The machine ensures precise separation of PCBs, maintaining the integrity of the boards and minimizing stress or damage to components.

  3. Adjustable Parameters: The machine offers adjustable parameters such as cutting speed, spindle pressure, and feed rate, allowing for optimal cutting performance on different PCB materials and thicknesses.

  4. Customizable Cutting Paths: The machine can be programmed to follow specific cutting paths based on the PCB design requirements, accommodating various shapes and sizes.

  5. Conveyor System: The machine includes a conveyor system to facilitate the smooth movement of PCBs during the separation process, enhancing efficiency and productivity.

PCB Depaneling Separator Specification:

Item SMTID3
Working area 250x200mm, 0-80mm(Z)
CCD 540
Spindle China Brand
Screw rod, guide rail, module China Brand
Servo Motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial Grade
Motion control card PI9074
monitor 17 inch
Operating system Windows 10
Spindle speed 40000RPM
XYZ drive speed XY.800mm/s, Z.300mm/s
Cutting speed 0-80mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air cooling
Vacuum cleaner power 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning)
Air pressure 0.5-0.7MPa
Noise control <80 dB
Safety device Safety door and sensor
Operation mode Inline
PCB Loading Adjustable feeding conveyor
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Adjustable height 50-70mm
Warning light Tricolor lamp
Working range protective cover Blind protection mode of hexahedral door
Dimension 1000(L)x1010(W)x1860(H)mm
Weight About 1000kgs



PCB Depaneling Separator Working Principe:
The Multi Type PCB Depaneling Separator with 2 Spindles operates based on the specific type of PCB being processed:

  1. V-cut Separation: For V-cut boards, the machine uses one of the spindles to follow the predefined V-cut lines on the PCB. The spindle applies controlled pressure and moves along the V-cut path, ensuring accurate separation without causing stress or damage.

  2. Tab Board Separation: For tab boards, the machine employs the other spindle to remove the tabs connecting individual boards. The spindle positions itself at the designated tab areas and applies controlled force, separating the tabs while maintaining the integrity of each PCB.

PCB Depaneling Separator Configuration List:

1. Inline PCB depaneling separator x 1 unit

2. Vacuum cleaner x 1 unit

3. Saw blade x 5 pcs

4. Routing bits x 50 pcs

5. Instruction manual x 1 pc

6. Operation video and setup video
