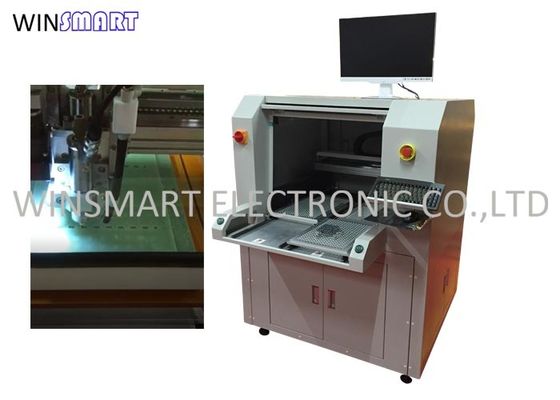

Semi Auto Spindle PCB Router System With 3HP Vacuum Dust Cleaner

Semi Auto Spindle PCB Router System With 3HP Vacuum Dust Cleaner
Semi Auto Spindle PCB Router System With 3HP Vacuum Dust Cleaner

Large Image :  Semi Auto Spindle PCB Router System With 3HP Vacuum Dust Cleaner

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Semi Auto Spindle PCB Router System With 3HP Vacuum Dust Cleaner

PCB Material: FR4, Aluminum Spindle: 60000RPM
Cutting Precision: ±0.05mm Feature: Top Cutting
Cutting Speed: 1-100mm/s Cleaner Weight: 150kgs
Vacuum Cleaner: 3HP/2.2KW Product Name: Semi-auto Spindle PCB Router
High Light:

Semi Auto Spindle PCB Router System


Vacuum Dust Cleaner PCB Router System


3HP Vacuum Dust Cleaner

Semi-auto Spindle PCB Router System And 3HP Vacuum Dust Cleaner



Semi-auto Spindle PCB Router Features:

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control(XY moving at the same time)

6. Easy teaching with image processing


Semi-auto Spindle PCB Router Introduction:

When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 4 different depth levels, which will cut down on bit replacement. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process.


Semi-auto Spindle PCB Router Specifications:

Router Machine SMTR05
X/Y Cutting Speed 0 ~100mm/s
Repeatability precision ± 0.01mm
X/Y1/Y2/Z control mode Industrial IPC and PC
X/Y1/Y2/Z driven mode AC Servo Motor
Operation and data storage PC
Cutting Precision ± 0.05mm
Spindle Speed 60000rpm(Germany KKAVO)
Power Supply 220V/110V
Air Pressure 4.5kg/cm 2
Power Rate 1.8KW
Vacuum Cleaner
Mode Up or Bottom
Power Supply 380V
Up Cleaner Dimension L650*W400*H1350mm
Bottom Cleaner Dimension L665*W635*H1650mm



Semi-auto Spindle PCB Router Advantages:

Firsly, it has the advantage of long tool life. After cutting a certain distance, the milling cutter will automatically rise / fall to another uncut blade position according to the setting. The up-down distance and times can be set freely according to the blade length to prolong the service life of the milling cutter. In addition, there is a power-off memory function. In normal use, in case of sudden power failure, the automatic PCB depaneling router machine system will notify the processing steps in case of power failure. Also, it can replace manual crushing, V-cut cutting, push cutting and other cutting defects, improve product quality and reduce scrap rate. Finally, the program can be set and entered manually. It has the functions of import and export, board connection copy, path copy, editing and modification, etc. It can simplify program making and save time.


Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
