Product Details:
|
| Testing Report: | Provided | Sefety Sensor: | Yes |
|---|---|---|---|
| PCB Material: | FR1, FR4, CEM | Cutting Speed: | Adjustable |
| Blade Material: | SKH-9 Steel | Name: | V Cut PCB Cutting Machine |
| Highlight: | PLC Control PCB Cutting Machine,500mm/S PCB Cutting Machine,Automatic Pcb Depaneling Cutter |
||

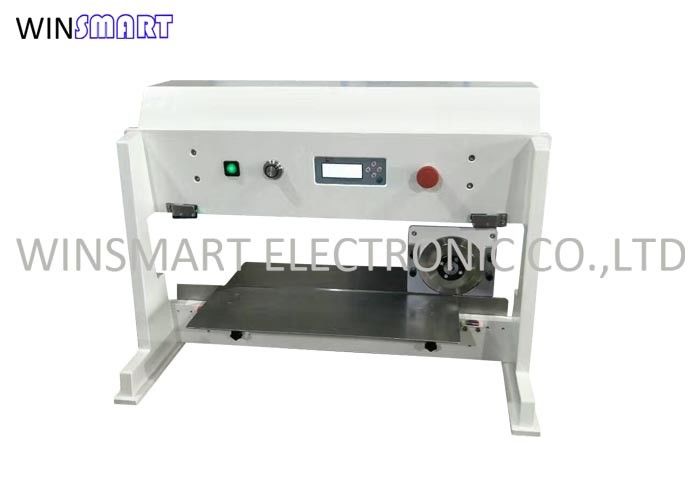

PLC Control Automatic PCB Depaneler Equipment PCB Cutting Machine
V Cut PCB Cutting Machine Functions:
1. V-cut PCB cutting machines provide a quick and precise method for separating PCBs, resulting in clean edges and minimal stress on the boards.
2. Separate individual PCBA from panel ffectively, saving manuafacturing and labor cost for clients.
3. Different parametersd can be selected for different applications.
V Cut PCB Cutting Machine Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
V Cut PCB Cutting Machine Specifications:
| Model | SMTAD1 |
| Max Cutting Length | 460mm |
| Dimension | 740*550*460mm |
| Cutting point | 0-100-200-300-400mm |
| Cutting Speed | 300mm/s ,500mm/s |
| Cutter point angle | 26~28° |
| Conveyor Belt (Options) | 1.5m |
| Cutting thickness | 0.6-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V or 110V, 50/60HZ, 250W |
| Max component height | 30 mm |
| Machine weight | 65kg / 85kg |
| PCB type | V-cut |
| PCB material | FR1, FR4, CEM1, CEM3, MCPCB |
| CE certification | Yes |
| Testing report | Yes |
| Blade material | High speed steel |
| Package | Plywood case |
| Lead time | 2-5 days |
| Machine Warranty period |
1 year |
| Blade type | Upper and lower linear blade |
| Colour | White |
| Platform height | Adjustable |
| Platform material | S/S |
V Cut PCB Cutting Machine Advantages:
1. The V-cut grooving process ensures high precision in separating individual PCBA.
2. Increase productivity in manufacturing processes.
3. It helps minimize material waste by accurately cutting along the defined grooves, optimizing material usage.
4. The cutting machine produces clean cuts with smooth edges, reducing the need for additional finishing processes.
5. Easy operation, no need for professional operators.
6. Max 2mm blade clearance for safe operation, operator cannot insert their fingers into the blades.
In summary, V-cut PCB cutting machines offer a cost-effective, precise, efficient, and versatile solution for separating individual PCBs from panels, making them essential tools in electronics manufacturing for achieving clean and accurate board separation.
V Cut PCB Cutting Machine Application:
It is mainly used to separate the individual PCBs without damaging components or traces.
Can be integrated into automated assembly lines for efficient and consistent panel separation.
