Product Details:
|
| PCB Thickness: | 0.1-3mm | Laser: | Optowave UV |
|---|---|---|---|
| Test Report: | Provided | Repeat Precision: | ±2 μm |
| Warranty: | 1 Year | Name: | PCB Laser Depaneling |
| Highlight: | PS Laser PCB Depaneling Machine,5G FPC Laser PCB Depaneling Machine,High Efficiency Pcb Separator Machine |
||

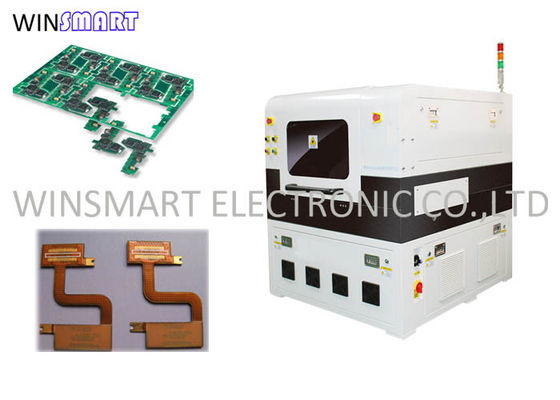

High Efficiency Laser PCB Separator Machine Laser Depaneling PCB For 5G FPC
PCB Laser Depaneling Machine Introduction:
1. The gantry structure and flying light path design make it easy to connect to the production line.
2. The PCB laser depaneling machine can be equipped with a special loading and unloading IN-LINE system according to production needs to realize automatic production and greatly improve production efficiency.
3. The PCB laser depaneling machine is a device tailored for FPC and PCB processing. The working mode of the ordinary cutting machine can realize assembly line operation and double-station production,the smart model design,the closed optical path system can process products within 450mm,which can be separated into a double platform 200mm range,it is tailor-made for FPC and PCB processing.
Easy Drill professional, friendly and simple cutting software:
While simplifying the processing steps of the cutting operation, the efficiency is improved, the operation is intuitive and simple, the file is transferred, and the corresponding parameter is selected from the expert parameter database to start cutting. The simple and friendly interface, the menu is clear and easy to understand, and the operators are prompted one by one to complete the processing task.
PCB Laser Depaneling Machine Details:
Condition: New
After Warranty Service: Field maintenance and repair service, Online support, Spare parts, Video technical support
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product
Warranty of core components: 1 Year
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump, Spindle
Place of Origin: Guangdong, China
Brand Name: Winsmart
Warranty: 1 Year
After-sales Service Provided: Field installation, training, Field maintenance and repair service, Free spare parts, Online support, Video technical support
Product name: Laser PCB Separator Machine
Laser source: PS Laser/NS Laser
Laser power: 15W/20W (Optional)
Whole machine precision: ±20 μm
Positioning precision: ±2 μm
Repeat precision: ±2 μm
Voltage/ Power supply: Single Phase AC220V/3KW
Machine Weight: 2000KG
Processing size: 460mm*460mm
Working mode(offline): Manual loading and unloading, Inline is available
PCB Laser Depaneling Machine Specification:
| Model | SMTL460 |
| Laser Source | Optowave UV 15W, 30KW(Standard) |
| Laser Type | Solid-state |
| Laser Wavelength | 355nm |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 460x460mm |
| Scanning Speed | 2500mm/s (max) |
| Working Filed | 40x40mm |
| Laser Bean Diameter | 0.02mm |
| Machine Weight | 2000kgs |
| Power Supply | AC 220V |
| Cooling | Water |
| Loading | Manual(Standard) |
| Unloading | Manual(Standard) |
| PCB Type | V-cut, Tab |
| PCB Material | FPC, FR4 |
Clean and Precise Cutting:
Lasers make clean, burr-free and precise cuts against the edge of circuits and other important components—improving overall design flexibility without damaging the substrate. Because you don’t have to reorder parts or sharpen bits and blade, laser systems are also more cost effective.
Application:
Laser PCB depaneling machines find applications in industries where precision cutting, fine pitch components, flex PCBs, reduced stress on PCBs, quick changeovers, clean cuts, complex shapes, and marking capabilities are essential for efficient and high-quality PCB separation processes.
