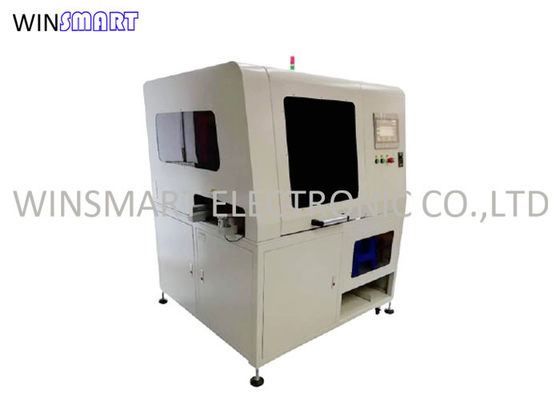

FR4 PCB Depanelizer Machine With Rotable Working Table

Description
CE Approval: Yes Original: 100% New
Voltage: 220V/110V Warranty: 1 Year
Full Automatic: Yes Name: Automatic PCB Depanelizer
High Light:

FR4 PCB Depanelizer Machine

,

Rotable Working Table PCB Depanelizer Machine

,

Rotable Working Table PCB Depaneling Equipment

Full Automatic PCB Depanelizer With 3-12 Multi Blade Sets Rotable Working Table





Full Automatic PCB Depanelizer Introduction:

This equipment can further improve the quality of depaneling. It can realize V-groove XY two-way automatic cutting, cutting aluminum & FR4 boards without burr, can connect the assembly line to realize full-automatic depaneling, no need to manually put the board, directly replace the cutter die and suction nozzle when replacing the product, saving time.



Full Automatic PCB Depanelizer Functions:

This machine is used for PCB board depaneling after inserter.

It has the functions of automatic feeding and automatic loading, and the machine is easy to operate.

The setting of each parameter ensures the consistency of the board feeding and the board depaneling.

Precision stepper motor and SMC pneumatic components are used, with high repeatability.

Using Mitsubishi PLC and Taiwan touch screen, the operation interface is simple.

Efficiency: 15s / PC (150x150mm, 8 blade sets).

Safety sensors in working area.



Full Automatic PCB Depanelizer Features:

A single group of multiple cutters can be divided automatically, and different cutters can be made according to different products.

Equipped with acrylic cover to ensure safety.

The electrical control part can be selected in the man-machine interface, convenient to open or shield.

There is a dust collecting tray under the knife mold.

Adopt square welding frame, sheet metal sealing plate, steel paint baking on the surface.

Suitable for all V-groove panels.

Depaneling material: FR, aluminum



Full Automatic PCB Depanelizer Specification:

Machine Dimension Name Inline V-Cut PCB Depanelizer
Dimension 1350*1200*1800mm
Weight 600kgs
Color White
Usage Requirements Power Supply AC220V, 1800W
Air Supply 0.6MPa
Environment Clean and dry, avoid humidity or high temperature
Min distance between component and scoring line 1.5mm
PCB Panel Range 12x12mm – 300x250mm
Suction Request min 10x10mm for suction nozzle per each single board
Max component height Upper 35mm, bottom 20mm
Software PLC Local brand
Parameter setting Setting on touch screen
Storage Available for 50 programs
Touch screen Taiwan brand
Sensor Omron
Blade Spec Material Japan high steel
Angel 10-30 degree
Life time 3,000,000 times
Knife mold precision 0.1mm
Replace knife mold time 60 minutes
Other Function Wrong operation protection Sensor, software
Safe protection Emergency stop switch
Power and gas cut off function Yes
Self check function Start up time monitoring, capacity monitoring, equipment fault information and automatic exclusion system



Full Automatic PCB Depanelizer Cutting Process:

1. The machine is equipped with a cutting die for the lower cutter, the PCB of the upper board mechanism is sent to the predetermined track, the manipulator moves over, and uses the vacuum nozzle to transport the PCB to the cutting die.

2. After the PCB is placed on the cutter die, it moves to the slitting position. The circular cutter slits the PCB. After each cut, the lower cutter die moves to the slitting position again. After all V groove lines in the X direction are cut, the automatic rotation platform rotates 90 degrees to slitting in the Y direction.

3. After the machine cuts the PCB, the cutter die exits, the manipulator moves, sucks up the single PCB and the waste edge at the same time, moves the waste frame to put down the waste, and then moves single boards to the tray of the receiving mechanism to place the product and send it away by the transportation line.

4. There is a vacuum cleaner under the cutter die of the machine to absorb the dust.
