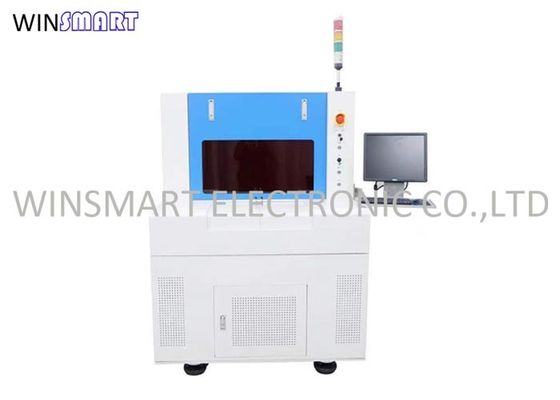

15W UV Laser PCB Depaneling Equipment With 300x300mm Working Table

Brand Name:	Winsmart
Model Number:	SMTL300
MOQ:	1 set
Price:	USD1-150K/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

On-site Installation:

Provide

Cutting Way:

Non-contact

Working Area:

300x300mm

Scan Range:

40x40mm

Laser:

UV 15W

Name:

PCB Laser Depaneling

Supply Ability:

100 sets per month

Highlight:

UV Laser PCB Depaneling Equipment

15W PCB Depaneling Equipment

300x300mm Working Table PCB Depanelizer

Product Description

Economic PCB Laser Depaneling System 300x300mm Working Table

Specification:

Laser	solid-state UV laser
Laser Wavelength	355nm
Laser Source	UV 15W@30KHz
Positioning Precision	±2μm
Repetition Precision	±1μm
Working Area	300mmx300mm(Customizable)
Scanning Speed	2500mm/S
Cutting Speed	Less 2500mm/S
Cutting Path	Line, Curve, Circle, Alien
Air Pressure	0.6-0.8MPa
Dimension	1250x1250x1740mm
Weight	1500kgs

Features:

1. No mechanical stress

2. Lower tooling costs

3. Higher quality of cuts

4. No consumables

5. Design versatility-simple software changes enable application changes

Advantages:

Laser Depaneling	Mechanical Cutting
No dust, good to PCB conductivity	More dust, affect conductivity
No stress, ±5μm cutting precision	Has cutting stress, cause damage to PCB
Import gerber file for easy operation	Need to replace cutters
Alien/line cutting is available	Cannot do alien cutting
Smooth cutting edge	Easy to collapse

Cutting Result:

15W UV Laser PCB Depaneling Equipment With 300x300mm Working Table 0

Applications:

Depaneling flex and rigid PCBs

Cover layer cutting

Cutting fired and unfired ceramics

PCB engraving
