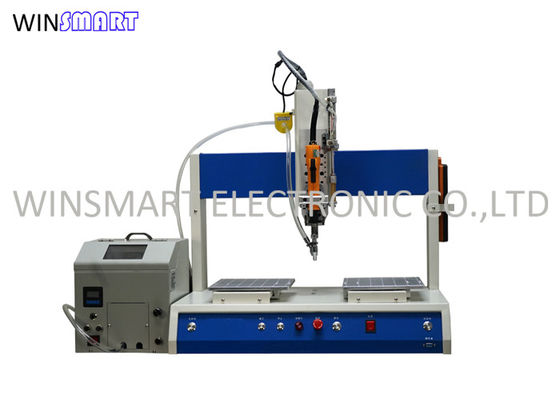

4 Axis Robotic Screwdriver Machine

4 Axis Robotic Screwdriver Machine
4 Axis Robotic Screwdriver Machine

Large Image :  4 Axis Robotic Screwdriver Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTSD212
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

4 Axis Robotic Screwdriver Machine

Axis: 4 Working Stroke: 500x300x300x100mm
Power: 110V/220V Usage: Locking Screws
Type: Air Blowing Name: Automatic Screwdriver Machine
High Light:

M5 Robotic Screwdriver Machine


4 Axis Robotic Screwdriver Machine


AC220V Automatic Screw Locking Machine

Automatic Screwdriver Adjustable Torque Electric Screwdriver Assembly Machine



Automatic Screwdriver Machine Classification:

Air blowing type

Vacuum suction type


Automatic Screwdriver Machine Advantages:

1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.

2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.

3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.


Automatic Screwdriver Machine Features:

1. With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
2. High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
3. High flexibility, standard universal clamp for a variety of models of screw locks.
4. Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
5. 2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
6. The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
7. The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.


Automatic Screwdriver Machine Specifications:

Model SMTSD211
Moving range 500X*300Y1*300Y2*100Zmm
Processing range 180X*300Y*110Zmm
Repetitive accuracy ±0.02mm(X/Y/Z)
Fixture platform 2
Screw head 1
Applicable screw M1.0-M5.0
Screw conveying method Air blowing
Driving mode precision stepping motor+precision lead rail
Axes of motion 4 axes
Display mode LCD
Control system special controller for screwdriver machine
Program record capacity 9999
Programming interface teaching pandent
Air pressure 4~6kg cm2
Vltage AC220V
Dimensions 680X500X725mm
Weight 75kg


Robotic Screwdriver Machine Applications:

The automatic screwdriver machine is suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly,etc. Automobile industry assembly, such as automotive motors, parts assembly, etc.

4 Axis Robotic Screwdriver Machine 0



Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
