Product Details:
|
Axis: | 3 | Working Stroke: | 300x300x100mm |
---|---|---|---|
Power: | 110V/220V | Locking Speed: | 2 Seconds Per Screw |
Type: | Suction | Name: | Robotic Screw Fastening System |
Highlight: | 0.02mm Robotic Screwdriver Machine,3 Axis Robotic Screwdriver Machine,4 kg/cm2 Screw Fastening Machine |
Robotic Screw Fastening System Auto Screw Feeder For Toys Assembly
Robotic Screw Fastening System Overview:
This equipment increases throughput on a variety of assembly applications.
This system is completely integrated and include robot, electric drivers, screw feeder systems.
The controller can store programs.
Robotic Screw Fastening System Process
Compared to other manufacturing methods, automatic screw machining offers a number of advantages, including:
1. Automation: Automatic screw machines can run with little operator oversight. They generally only require assistance during setup and changeover.
2. Efficiency: 2 seconds per screw, increases efficiency of production.
3. Save money
Robotic Screw Fastening System Features:
1. With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
2. High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
3. High flexibility, standard universal clamp for a variety of models of screw locks.
4. Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
5. 2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
6. The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
7. The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.
Robotic Screw Fastening System Specifications:
Model | SMTSD111 |
Moving range | 300X*300Y*100Zmm |
Processing range | 270X*300Y*110Zmm |
Repetitive accuracy | ±0.02mm(X/Y/Z) |
Fixture platform | 1 |
Screw head | 1 |
Applicable screw | M1.0-M5.0 |
Screw conveying method | Vacuum suction |
Driving mode | precision stepping motor+precision lead rail |
Axes of motion | 3 axes |
Display mode | LCD |
Control system | special controller for screwdriver machine |
Program record capacity | 9999 |
Programming interface | teaching pandent |
Air pressure | 4~6kg cm2 |
Vltage | AC220V |
Dimensions | 680X500X725mm |
Weight | 60kg |

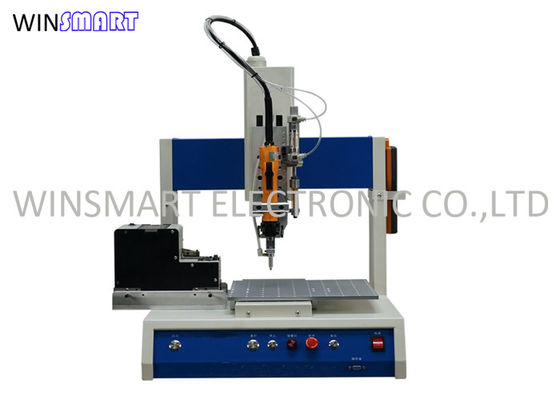

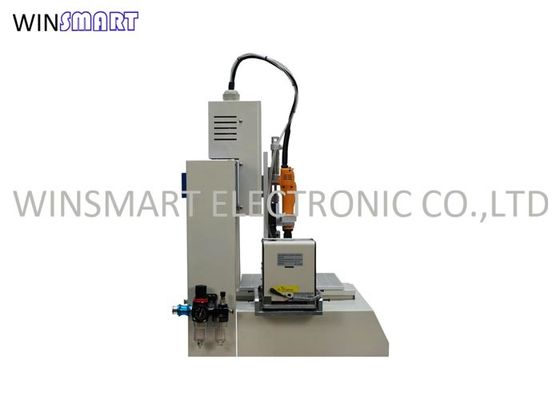

Robotic Screw Fastening System Details:
