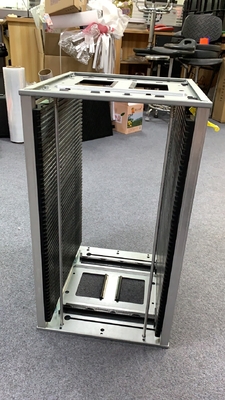

Adjustable SMT Magazine Rack PCB Carrier For SMT Production

Adjustable SMT Magazine Rack PCB Carrier For SMT Production
Adjustable SMT Magazine Rack PCB Carrier For SMT Production Adjustable SMT Magazine Rack PCB Carrier For SMT Production

Large Image :  Adjustable SMT Magazine Rack PCB Carrier For SMT Production

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: PM0409
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD1-100/Set
Packaging Details: Plywood case
Delivery Time: 7-14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sets per month

Adjustable SMT Magazine Rack PCB Carrier For SMT Production

Description
Type: High Temperature Resistance Size: 355x320x563mm
Pitch: 10mm Usage: PCB Storage
Condition: New Name: SMT PCB Magazine Rack
High Light:

PCB Magazine Storage Rack

,

Adjustable SMT Magazine Rack

,

PCB Carrier SMT Magazine Rack

Adjustable SMT Magazine Storage Rack PCB Carrier For SMT Production





ESD PCB Magainze Rack Dimensions Introduction:

1. Dimension: 355x320x563mm, storing 50pcs of 350x(50-250)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

2. Dimension: 355x315x580mm, storing 50pcs of 350x(80-250)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

3. Dimension: 460x400x563mm, storing 50pcs of 460x(100-330)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

4. Dimension: 535x460x570mm, storing 50pcs of 535x(50-390)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm

5. Dimension: 535x530x570mm, storing 50pcs of 535x(50-460)MM PBC Boards

    Depth 3.5mm, width 5mm, pitch 10mm



ESD PCB Magazine Rack Specification:

Name ESD PCB Magazine Rack
Surface resistance 104~106 Ω
Overall size 355x320x563mm
Storage capacity 50pcs
PCB Spec L355xW(50-250)mm
Side guide slot depth 3.5mm, width 5mm, pitch 10mm
Heat resistant 80°C/120°C/200 °C
Ref. Position A=34mm, B=34mm
Materials Aluminum + steel





ESD PCB Magazine Rack Details:

Adjustable SMT Magazine Rack PCB Carrier For SMT Production 0Adjustable SMT Magazine Rack PCB Carrier For SMT Production 1





ESD PCB Magazine Rack Installation:

Adjustable SMT Magazine Rack PCB Carrier For SMT Production 2
